ASUS PRIME B760M-A DDR4 M-ATX MOTHERBOARD

Name: ASUS PRIME B760M-A DDR4 M-ATX MOTHERBOARD
Brand: ASUS
SKU: TH-SKU-524109
Price: 19500 BDT
Availability: InStock

0 reviewsIn stockSKU: TH-SKU-524109Brand: ASUS

Special price

৳ 19,500৳ 20,800Save ৳ 1,300 (6% OFF)

For B2B — register for wholesale price · Sign in

Quick Overview

Key Features

Model: PRIME B760M-A D4
Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 128GB, DDR4
Graphics Output: 1 x DisplayPort, 2 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet

Sale

Qty

Avail EMI offer

EMI starts from ৳ 1,625/month

3 Year. Prices in ৳ are display-only and are not a charge.

Specification

Basic Information

Supported CPUIntel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

ChipsetIntel B760 Chipset

BIOS128 Mb Flash ROM, UEFI AMI BIOS

Form FactormATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCIIntel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)

M.2 SocketTotal supports 2 x M.2 slots

Memory

TypeDDR4

Slots4 x DIMM

Supported Memory4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II

Details

Q&A

Review

Brand: ASUS
Warranty: 3Y3 Year

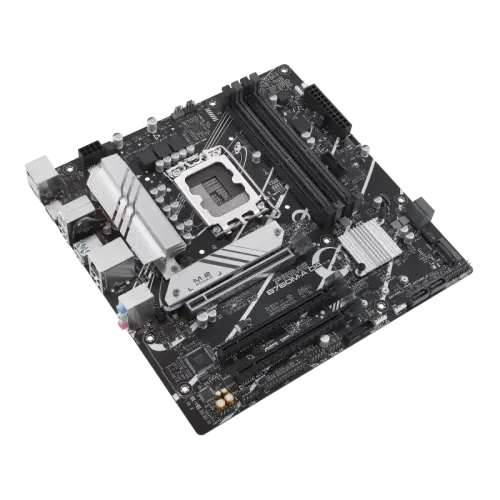

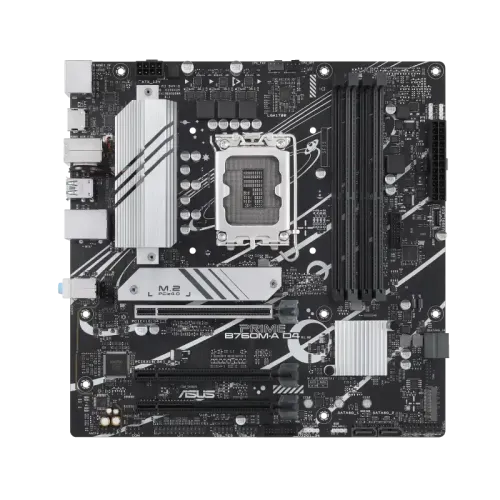

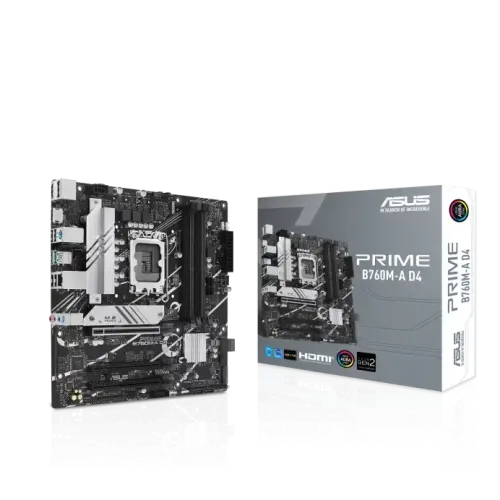

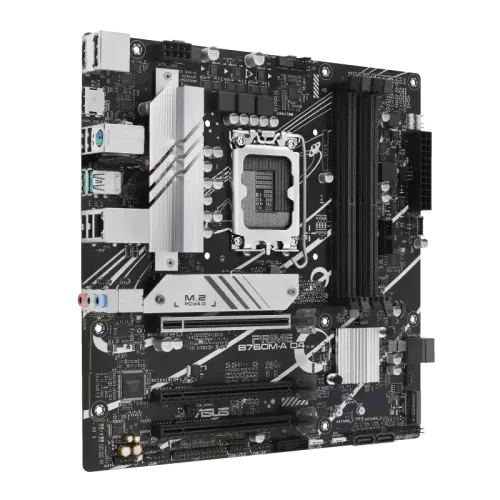

ASUS PRIME B760M-A D4 M-ATX Motherboard

The ASUS PRIME B760M-A D4 M-ATX Motherboard is designed for users who want to build a reliable and versatile desktop PC for work, entertainment, content creation, and gaming. Powered by the Intel B760 chipset and featuring the LGA1700 socket, this motherboard supports compatible 12th, 13th, and 14th Gen Intel Core processors, as well as supported Intel Pentium Gold and Celeron processors. Its Micro-ATX form factor, DDR4 memory support, and modern storage connectivity make it a practical foundation for a wide range of PC builds.

Intel LGA1700 Platform and DDR4 Memory

The PRIME B760M-A D4 features four DDR4 DIMM slots and supports up to 128GB of system memory in a dual-channel configuration. Intel Extreme Memory Profile (XMP) support allows users to configure compatible memory modules for supported performance profiles. Memory speed depends on the processor, installed modules, and system configuration, with overclocked speeds available for supported hardware.

High-Speed M.2 Storage

With two PCIe 4.0 x4 M.2 slots, the motherboard supports compatible NVMe SSDs for fast system startup, application loading, and file transfers. Four SATA 6Gb/s ports provide additional storage options for compatible hard drives and SATA SSDs. This flexible storage configuration is suitable for users who need a balance of speed and capacity.

PCIe Expansion for Graphics and Accessories

The ASUS PRIME B760M-A D4 includes three PCIe 4.0 expansion slots: one PCIe x16 slot connected to the processor, one chipset-connected slot operating at up to x4, and another chipset-connected slot operating at up to x1. These slots support compatible graphics cards and expansion devices according to their interface requirements. This gives PC builders flexibility when selecting components for gaming, productivity, and other applications.

2.5Gb Ethernet Connectivity

Built-in Realtek 2.5Gb Ethernet provides faster wired networking than standard Gigabit Ethernet when supported by the network equipment and internet or local network connection. It is suitable for responsive online gaming, large file transfers, network storage access, and everyday internet use.

Display Outputs and USB Connectivity

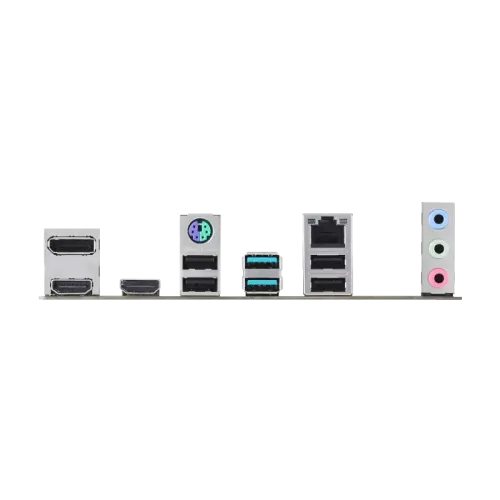

The motherboard provides one DisplayPort 1.4 output and two HDMI 2.1 ports for compatible displays. Display functionality depends on the installed processor having integrated graphics. Rear USB connectivity includes two USB 3.2 Gen 2 Type-A ports and four USB 2.0 Type-A ports, while internal headers support additional front-panel USB connections, including a USB Type-C connector on compatible PC cases.

High-Definition Audio and ASUS Protection Features

The Realtek 7.1-channel High Definition Audio codec supports immersive audio output with compatible hardware and software. ASUS 5X Protection III incorporates features such as DIGI+ VRM, LANGuard, overvoltage protection, and SafeSlot Core+ to support system protection and reliability. An M.2 heatsink and VRM heatsink design also help manage heat in supported system configurations.

Compact Micro-ATX Design

With its 24.4 × 24.4 cm Micro-ATX form factor, the PRIME B760M-A D4 fits compatible compact and standard desktop cases. It also includes Aura RGB and Addressable Gen 2 headers for compatible lighting components, allowing users to customize their PC's appearance.

The ASUS PRIME B760M-A D4 combines Intel processor compatibility, DDR4 memory support, dual PCIe 4.0 M.2 slots, 2.5Gb Ethernet, and flexible expansion options in a compact design. It is a suitable choice for users planning a productivity-focused desktop or a capable gaming PC.

Buy ASUS PRIME B760M-A D4 M-ATX Motherboard from TECHNO HOUSE

Looking for a reliable motherboard for your Intel-based desktop PC? The ASUS PRIME B760M-A D4 M-ATX Motherboard offers modern connectivity, flexible storage expansion, and DDR4 memory support, making it suitable for home users, professionals, students, and PC enthusiasts.

At TECHNO HOUSE, customers in Bangladesh can explore computer components and accessories for different PC-building needs. Contact our team to confirm the latest price, availability, warranty information, and processor compatibility before placing your order.

Why Buy from TECHNO HOUSE?

A wide range of computer components and accessories
Helpful product information and purchasing assistance
Guidance on selecting compatible PC hardware
Solutions for home, office, and gaming PC builds

Choose the ASUS PRIME B760M-A D4 to build a versatile Intel desktop with high-speed storage, dependable wired networking, and flexible expansion options.
