Model: PRIME B760M-K D4
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DDR4, Max. 64GB 5333(OC)
Graphics Output: 1 x VGA port, 1 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet
EMI starts from ৳ 1,242/month
3 Year. Prices in ৳ are display-only and are not a charge.

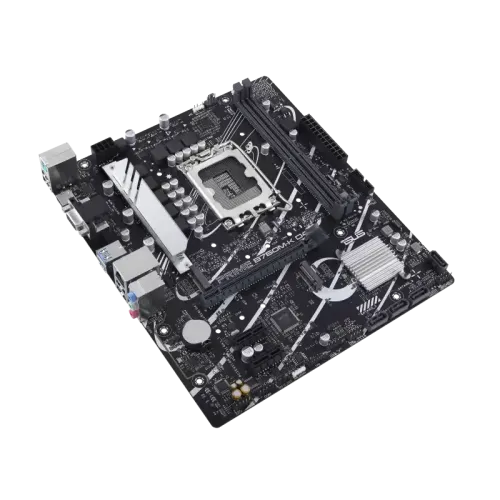

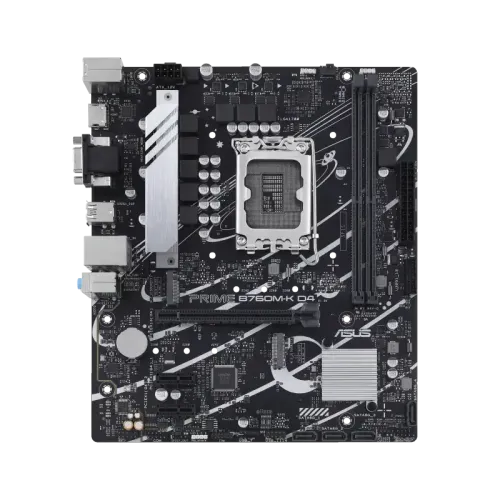

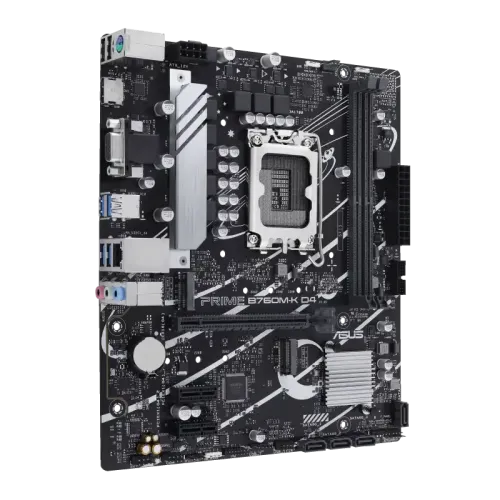

The ASUS PRIME B760M-K D4 M-ATX Motherboard is designed for users who want a reliable and versatile foundation for building an Intel-based desktop PC. Powered by the Intel B760 chipset and featuring the LGA1700 socket, it supports compatible 12th, 13th, and 14th Gen Intel Core processors, as well as supported Intel Pentium Gold and Celeron processors. With DDR4 memory support, dual M.2 storage slots, and a compact Micro-ATX design, this motherboard is suitable for office productivity, home computing, multimedia applications, and gaming builds.
The PRIME B760M-K D4 features two DDR4 DIMM slots and supports up to 64GB of dual-channel system memory. Intel Extreme Memory Profile (XMP) support allows compatible memory modules to use supported performance profiles. Memory speed depends on the installed processor and configuration, with higher speeds available through overclocking on supported hardware.
The motherboard includes two M.2 slots supporting compatible PCIe 4.0 x4 NVMe SSDs. These high-speed storage options can help improve system startup, application loading, and file-transfer performance. Four SATA 6Gb/s ports provide additional connectivity for compatible SATA SSDs and hard drives, allowing users to configure storage according to their needs.
The ASUS PRIME B760M-K D4 features one PCIe 4.0 x16 slot for a compatible dedicated graphics card and two PCIe 4.0 x1 slots for supported expansion cards. This configuration provides flexibility for gaming, productivity, and multimedia systems while maintaining a compact motherboard layout.
Built-in Realtek 2.5Gb Ethernet provides wired network connectivity with speeds beyond standard Gigabit Ethernet when supported by the connected network equipment. It is suitable for online gaming, large file transfers, network storage, video streaming, and everyday internet use. Actual network speeds depend on your router, network infrastructure, and internet service.
The motherboard provides HDMI and VGA display outputs for compatible monitors. HDMI supports resolutions up to 4K at 60Hz. Display output requires a compatible processor with integrated graphics; otherwise, a dedicated graphics card with suitable display outputs is required.

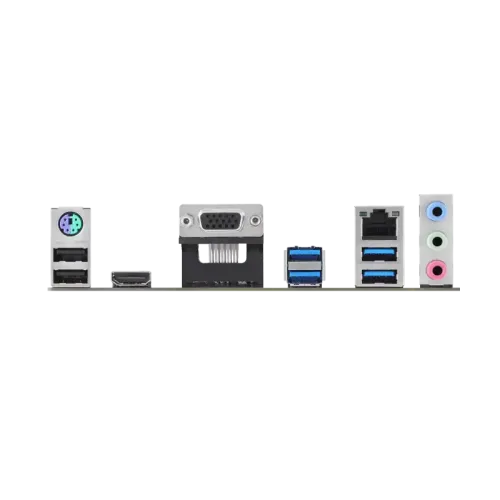

The rear I/O panel includes four USB 3.2 Gen 1 Type-A ports and two USB 2.0 Type-A ports for compatible peripherals and accessories. Internal USB headers support additional front-panel USB connections when paired with a compatible PC case.
The onboard Realtek 7.1-channel High Definition Audio codec supports compatible speakers and headsets for gaming, entertainment, video calls, and everyday use. Audio shielding, premium audio capacitors, and dedicated audio PCB layers are designed to help deliver clear sound.
ASUS 5X Protection III incorporates features such as DIGI+ VRM, LANGuard, overvoltage protection, and SafeSlot Core to help support hardware protection and system reliability. ASUS Q-Design features, including Q-DIMM, Q-Slot, and Q-LED Core, help simplify selected installation and troubleshooting tasks.
Aura RGB and Addressable Gen 2 headers allow users to connect compatible lighting components and customize their PC's appearance through supported ASUS Aura Sync software.
With its 24.4 × 21.1 cm Micro-ATX form factor, the ASUS PRIME B760M-K D4 fits compatible compact and standard desktop PC cases. Its combination of Intel processor support, DDR4 memory, dual M.2 slots, 2.5Gb Ethernet, and flexible expansion options makes it a practical choice for users building a modern Intel desktop.
The ASUS PRIME B760M-K D4 M-ATX Motherboard offers a balanced combination of performance-oriented connectivity, storage flexibility, and essential features for home, office, and gaming PC builds.
Looking for a dependable motherboard for your Intel desktop PC? The ASUS PRIME B760M-K D4 M-ATX Motherboard combines DDR4 memory support, dual PCIe 4.0 M.2 slots, 2.5Gb Ethernet, and essential expansion options in a compact design. It is suitable for students, professionals, home users, and PC enthusiasts planning a versatile desktop system.
At TECHNO HOUSE, customers in Bangladesh can explore computer components and accessories for different PC-building requirements. Contact our team to confirm the latest price, availability, warranty information, and processor compatibility before placing your order.
A range of computer components and accessories
Helpful product information and purchasing assistance
Guidance on selecting compatible PC hardware
Solutions for home, office, and gaming PC builds
Choose the ASUS PRIME B760M-K D4 to build a versatile Intel desktop with DDR4 memory and high-speed storage connectivity.
