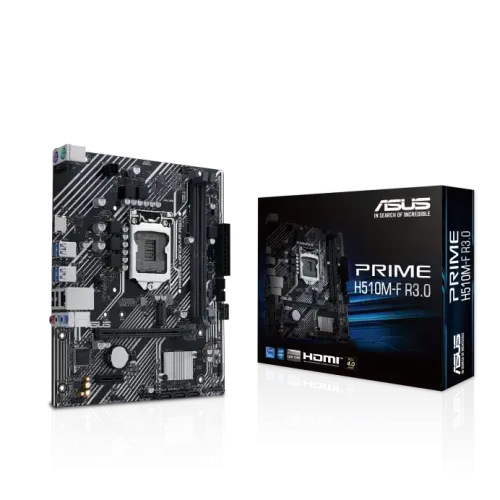

ASUS PRIME H510M-F R3.0 LGA1200 M-ATX MOTHERBOARD

Name: ASUS PRIME H510M-F R3.0 LGA1200 M-ATX MOTHERBOARD
Brand: ASUS
SKU: TH-SKU-924858
Price: 11200 BDT
Availability: InStock

0 reviewsIn stockSKU: TH-SKU-924858Brand: ASUS

Special price

৳ 11,200৳ 12,300Save ৳ 1,100 (9% OFF)

For B2B — register for wholesale price · Sign in

Quick Overview

Key Features

Model: PRIME H510M-F R3.0
Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
Graphics Output: 1x HDMI port
Features: 1 x Realtek 1Gb Ethernet

Sale

Qty

Avail EMI offer

EMI starts from ৳ 933/month

3 Year. Prices in ৳ are display-only and are not a charge.

Specification

Basic Information

Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

ChipsetIntel H470 Chipset

BIOS128 Mb Flash ROM, UEFI AMI BIOS

Form FactormATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )

Expansion Slots

PCIIntel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot

M.2 SocketTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Memory

TypeDDR4

Slots2 x DIMM

Supported Memory3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.

Maximum MemoryMax. 64GB

Details

Q&A

Review

Brand: ASUS
Warranty: 3Y3 Year

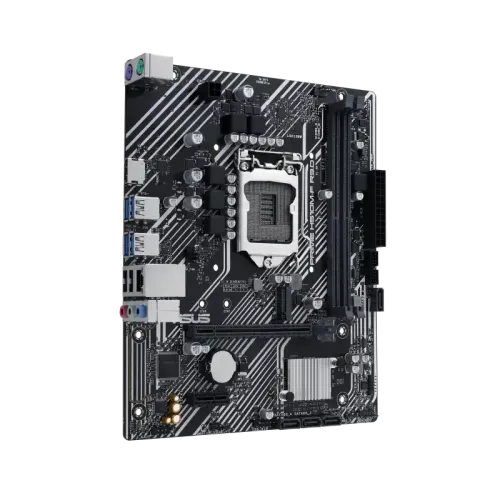

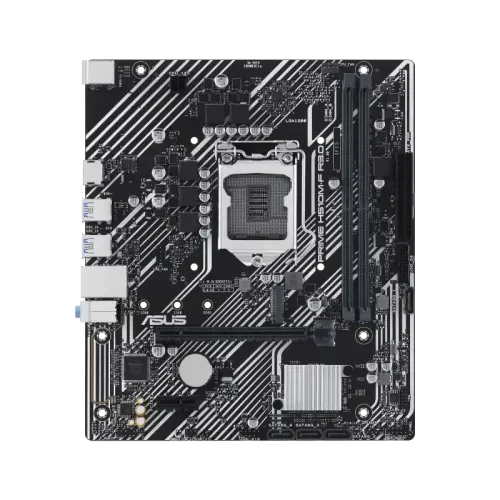

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

The ASUS PRIME H510M-F R3.0 is a reliable and practical Micro-ATX motherboard designed for everyday computing, office work, home use, and budget-friendly PC builds. Featuring an Intel LGA1200 socket and Intel H470 chipset, it supports compatible 10th and 11th Generation Intel Core processors, along with selected Intel Pentium Gold and Celeron CPUs. Its compact design and essential connectivity options make it a suitable choice for users looking to build an efficient desktop computer.

Intel LGA1200 Processor Support

This motherboard supports compatible 10th and 11th Gen Intel Core processors, providing a solid foundation for daily productivity, multitasking, office applications, web browsing, and general home computing. Always check the official CPU support list and processor power requirements before choosing a CPU.

DDR4 Dual-Channel Memory

The ASUS PRIME H510M-F R3.0 features two DDR4 DIMM slots and supports up to 64GB of memory. Dual-channel memory architecture helps provide responsive system performance for everyday applications. Supported memory speeds depend on the installed processor and memory configuration, with compatible 11th Gen CPUs supporting speeds up to 3200MHz (OC).

M.2 and SATA Storage Options

For faster system startup and application loading, the motherboard includes one M.2 slot supporting compatible PCIe 3.0 x4 and SATA-mode SSDs. Four SATA 6Gb/s ports provide additional connectivity for compatible SATA SSDs and hard drives, offering flexibility for operating systems, applications, documents, and multimedia storage.

PCIe Expansion and Graphics Connectivity

The motherboard features one PCIe x16 expansion slot for a compatible graphics card or other supported expansion device, along with one PCIe 3.0 x1 slot. The PCIe x16 slot supports PCIe 4.0 with compatible 11th Gen Intel processors and PCIe 3.0 with 10th Gen processors.

An HDMI output allows connection to a compatible monitor when used with a processor that includes integrated graphics.

Essential Connectivity and Audio

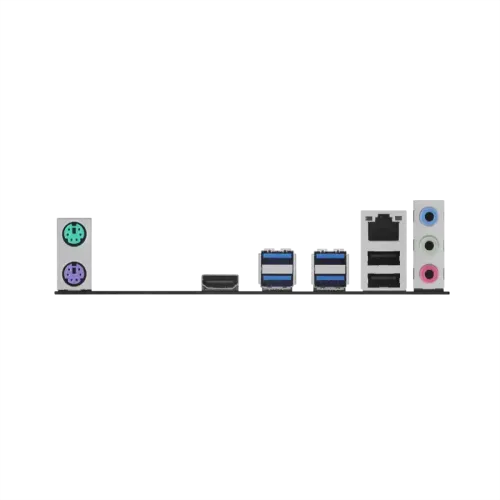

The ASUS PRIME H510M-F R3.0 provides practical connectivity for everyday desktop use, including:

4 x USB 5Gbps Type-A ports on the rear panel
2 x USB 2.0 Type-A ports on the rear panel
1 x Realtek Gigabit Ethernet port
1 x HDMI display output
3 x audio jacks
PS/2 keyboard and mouse ports

Its Realtek 7.1-channel High Definition Audio support delivers onboard audio for compatible speakers and headsets.

ASUS 5X Protection III

Built-in ASUS protection technologies include DIGI+ VRM, overvoltage protection, LANGuard, SafeSlot Core, and a stainless-steel back I/O design. These features are designed to support dependable operation and improve hardware protection.

Compact Micro-ATX Design

With its compact 22.6 x 19.6 cm Micro-ATX form factor, this motherboard is suitable for compatible desktop cases where space efficiency matters. It is a practical option for office desktops, home computers, and entry-level PC configurations.

Buy ASUS PRIME H510M-F R3.0 from TECHNO HOUSE

Looking for the ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard in Bangladesh? TECHNO HOUSE offers computer hardware and PC components for users building or upgrading their desktop systems.

Contact TECHNO HOUSE to confirm the latest price, availability, warranty terms, and compatibility with your selected processor, RAM, storage, and PC case.

Why Buy from TECHNO HOUSE?

Computer hardware and PC components
Assistance with component compatibility
Support for selecting suitable PC configurations
Convenient access to computer products in Bangladesh

Choose the ASUS PRIME H510M-F R3.0 for a compact desktop build with essential connectivity, DDR4 memory support, and flexible storage options.
