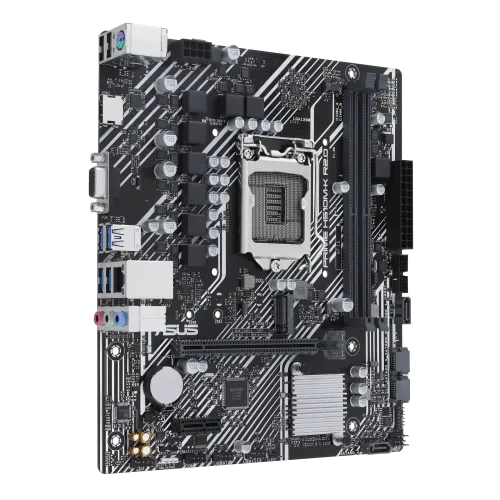

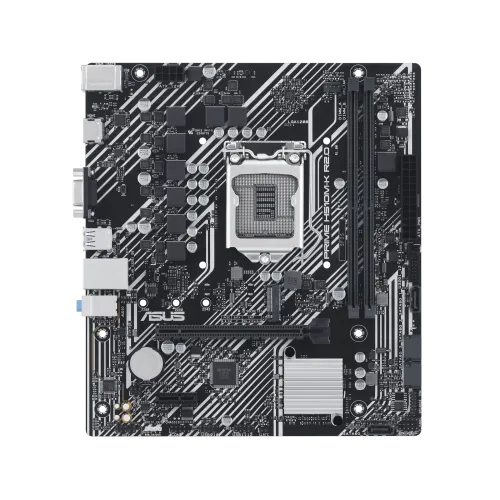

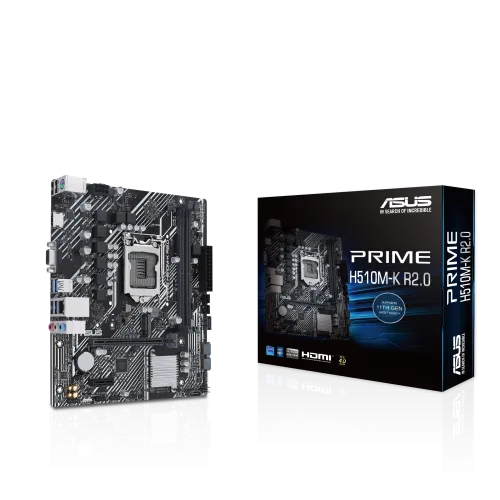

ASUS PRIME H510M-K R2.0 10th and 11th GEN M-ATX MOTHERBOARD

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard

The ASUS PRIME H510M-K R2.0 is a reliable and compact Micro-ATX motherboard designed for everyday desktop computing and budget-friendly PC builds. Featuring an Intel LGA1200 socket and Intel H470 chipset, it supports compatible 10th and 11th Generation Intel Core processors, as well as selected Intel Pentium Gold and Celeron processors. With DDR4 memory support, M.2 SSD connectivity, PCIe expansion, and essential display and networking options, it provides a practical foundation for home computers, office desktops, and productivity systems.

Intel LGA1200 Processor Support

The motherboard supports compatible 10th and 11th Gen Intel Core processors, along with selected Intel Pentium Gold and Celeron CPUs. It provides a suitable platform for office applications, web browsing, online learning, multitasking, and everyday computing. Processor compatibility depends on the specific CPU model and BIOS version.

DDR4 Dual-Channel Memory

Equipped with two DDR4 DIMM slots, the ASUS PRIME H510M-K R2.0 supports up to 64GB of non-ECC, unbuffered memory. Dual-channel memory architecture helps improve memory bandwidth and overall system responsiveness. It also supports Intel XMP memory profiles, with supported memory speeds depending on the installed processor and configuration.

M.2 and SATA Storage Connectivity

The motherboard features one M.2 slot supporting compatible PCIe 3.0 x4 and SATA-mode SSDs. This allows users to install a high-speed SSD for faster system startup and application loading. Four SATA 6Gb/s ports provide additional storage connectivity for compatible SSDs and traditional hard drives.

PCIe Expansion Support

The ASUS PRIME H510M-K R2.0 includes:

• 1 x PCIe 4.0/3.0 x16 slot

• 1 x PCIe 3.0 x1 slot

The primary PCIe x16 slot supports PCIe 4.0 with compatible 11th Gen Intel processors and PCIe 3.0 with 10th Gen processors. It provides connectivity for compatible graphics cards and supported expansion devices.

HDMI and VGA Display Outputs

Featuring both HDMI and VGA display outputs, this motherboard supports different monitor connection options. With compatible 11th Gen Intel processors, HDMI supports up to 4K resolution at 60Hz. Other processor configurations may support different display specifications. A CPU with integrated graphics is required to use the motherboard's display outputs without a dedicated graphics card.

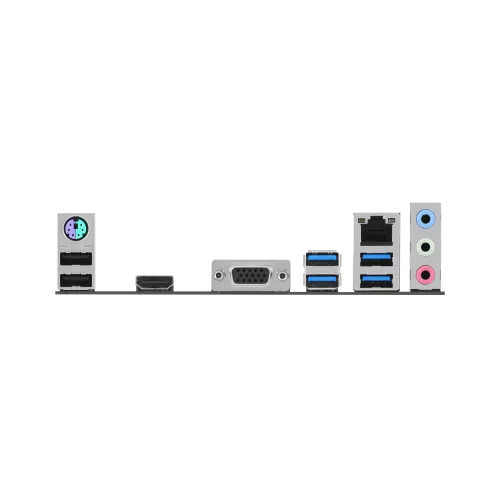

USB and Networking Connectivity

The ASUS PRIME H510M-K R2.0 provides practical connectivity for everyday desktop use, including:

• 2 x USB 5Gbps Type-A ports on the rear panel

• 4 x USB 2.0 Type-A ports on the rear panel

• 1 x HDMI display output

• 1 x VGA display output

• 1 x Realtek Gigabit Ethernet port

• 3 x audio jacks

• PS/2 keyboard and mouse combo port

The Gigabit Ethernet connection provides reliable wired networking for internet access, online communication, and file transfers.

Realtek High-Definition Audio

The onboard Realtek 7.1-channel High Definition Audio codec supports compatible speakers and headsets. Its audio design helps deliver clear sound for entertainment, video calls, music, and everyday multimedia applications.

ASUS 5X Protection III

ASUS 5X Protection III incorporates hardware protection technologies designed to improve system reliability. These include DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, and a stainless-steel back I/O design. These technologies help protect important motherboard components and support dependable operation.

Compact Micro-ATX Design

With its compact Micro-ATX form factor, the ASUS PRIME H510M-K R2.0 is suitable for compatible desktop cases. Its combination of Intel processor support, DDR4 memory, M.2 storage, and essential connectivity makes it a practical choice for home and office PC configurations.

Buy ASUS PRIME H510M-K R2.0 Motherboard from TECHNO HOUSE

Looking for the ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard in Bangladesh? TECHNO HOUSE offers computer hardware and PC components for customers building a new desktop or upgrading an existing system.

Contact TECHNO HOUSE to confirm the latest price, stock availability, warranty terms, and compatibility with your selected Intel processor, DDR4 RAM, SSD, graphics card, and PC case.

Why Buy from TECHNO HOUSE?

• A selection of computer hardware and PC components

• Assistance with component compatibility

• Guidance for choosing suitable desktop configurations

• Convenient access to PC components in Bangladesh

Choose the ASUS PRIME H510M-K R2.0 for a compact and practical Intel desktop build with DDR4 memory, M.2 storage, PCIe expansion, and essential connectivity.
