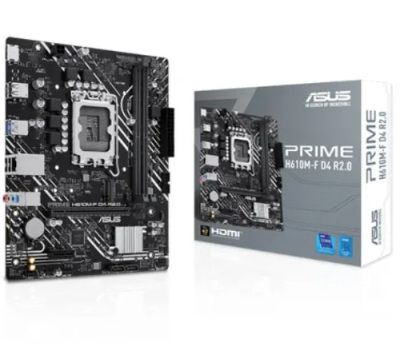

ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard

Specification

Basic Information

Supported CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*

Supports up to Intel 65W CPU

Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel H610 Chipset

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

mATX Form Factor

8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Expansion Slots

PCI

Intel Core Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel H610 Chipset

1 x PCIe 3.0 x1 slot

M.2 Socket

Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports

Intel H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

Memory

Type

DDR4

Slots

2 x DIMM

Supported Memory

3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Dual channel memory architecture

Supports Intel Extreme Memory Profile (XMP) memory module

Maximum Memory

Max. 64GB

Graphics

Graphics

1 x HDMI port

Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI

1 x HDMI port

USB (s)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

LAN Port (s)

1 x Realtek 1Gb Ethernet

Supported Storage

Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

2 x SATA 6Gb/s ports

Audio

3 x Audio jacks

Internal I/O Ports

Back Panel I/O Ports

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x HDMITM port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power Related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector

Storage Related

1 x M.2 slot (Key M)

2 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Front Panel Audio header (F_AUDIO)

1 x Speaker header

1 x 10-1 pin System Panel header

Others

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage protection

- SafeSlot Core

- Stainless-steel back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

- Q-LED Core

ASUS Thermal Solution

- Aluminum heatsink design

Bundled Software

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- EPU

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode
