Model: PRIME H610M-R
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DIMM, Max. 96GB, DDR5 5600
Graphics Output: 1x HDMI, 1x VGA, 1x DP
Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet
EMI starts from ৳ 950/month
3 Year. Prices in ৳ are display-only and are not a charge.
ASUS PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard

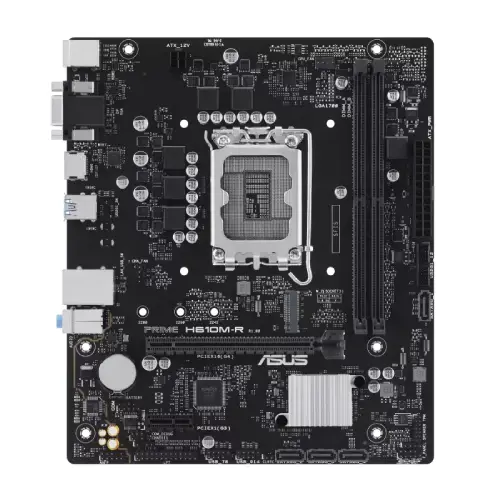

The ASUS PRIME H610M-R is a reliable and versatile Micro-ATX motherboard designed for modern Intel desktop PC builds. Powered by the Intel H610 chipset and featuring the LGA1700 socket, it supports compatible 12th, 13th, and 14th Generation Intel Core processors, along with selected Intel Pentium Gold and Celeron processors. With DDR5 memory support, PCIe 4.0 expansion, M.2 SSD connectivity, and multiple display outputs, it provides a practical foundation for office computers, home desktops, productivity systems, and everyday gaming setups.
The ASUS PRIME H610M-R supports compatible 12th, 13th, and 14th Gen Intel Core processors, as well as selected Intel Pentium Gold and Celeron CPUs. It delivers a dependable platform for everyday computing, multitasking, office applications, entertainment, and compatible gaming configurations. Processor compatibility depends on the specific CPU model and BIOS version.
Equipped with two DDR5 DIMM slots, this motherboard supports up to 96GB of non-ECC, unbuffered memory. Its dual-channel memory architecture helps improve memory bandwidth and system responsiveness.
Supported memory speeds include DDR5 4800, 5000, 5200, 5400, and 5600 MT/s, depending on the processor and memory configuration. Intel XMP support allows users to configure compatible memory profiles for enhanced performance.
The motherboard features one PCIe 4.0 x16 slot for a compatible graphics card and one PCIe 3.0 x1 slot for supported expansion devices. These expansion options provide flexibility for graphics upgrades and additional hardware installations.
The ASUS PRIME H610M-R features one M.2 slot supporting compatible PCIe 3.0 x4 NVMe SSDs. This provides faster storage performance for operating system startup, application loading, and file access.
Additionally, four SATA 6Gb/s ports support compatible SATA SSDs and traditional hard drives, giving users flexibility to expand their storage capacity.
With three display output options, the motherboard offers flexible monitor connectivity:
1 x HDMI 2.1 port supporting up to 4K at 60Hz
1 x DisplayPort 1.4 supporting up to 4K at 60Hz
1 x VGA port
These display outputs allow users to connect compatible monitors for office work, multimedia, and productivity. Display functionality depends on the integrated graphics capabilities of the installed processor.

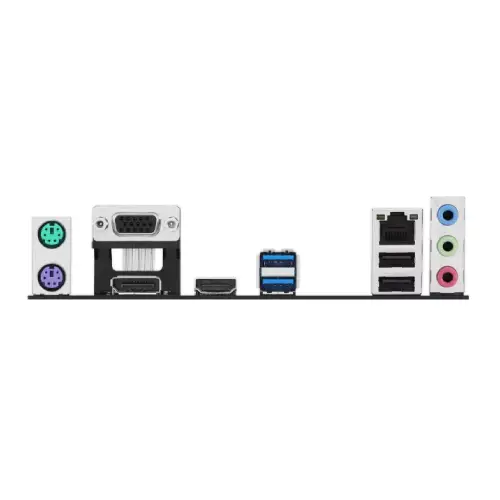

The ASUS PRIME H610M-R provides practical connectivity for modern desktop systems, including:
2 x USB 3.2 Gen 1 Type-A ports on the rear panel
4 x USB 2.0 Type-A ports on the rear panel
Additional USB connectivity through internal headers
1 x Realtek Gigabit Ethernet port
1 x HDMI port
1 x DisplayPort
1 x VGA port
3 x audio jacks
The Gigabit Ethernet connection provides reliable wired networking for internet access, online communication, and file transfers.
The onboard Realtek 7.1-channel Surround Sound High Definition Audio codec supports compatible speakers and headsets. Audio features include audio shielding, premium audio capacitors, and dedicated audio PCB layers to help deliver clear sound for music, movies, gaming, and online communication.
ASUS 5X Protection III incorporates hardware protection technologies designed to support reliable system operation. Key features include:
DIGI+ VRM for precise power control
LANGuard for network protection
Overvoltage Protection
SafeSlot Core for PCIe slot durability
Stainless-Steel Back I/O
These technologies help protect important motherboard components and improve overall system reliability.
ASUS Q-Design features such as Q-DIMM, Q-Slot, and Q-LED Core help simplify PC installation and troubleshooting. The motherboard also includes an aluminum heatsink design to help manage chipset temperatures during normal operation.
Measuring approximately 22.6 x 19.5 cm, the ASUS PRIME H610M-R features a compact Micro-ATX form factor suitable for compatible desktop cases. Its combination of DDR5 memory, PCIe 4.0 expansion, M.2 storage, and multiple display outputs makes it a practical choice for modern Intel desktop configurations.
Looking for the ASUS PRIME H610M-R DDR5 LGA1700 Micro-ATX Motherboard in Bangladesh? TECHNO HOUSE offers computer hardware and PC components for customers building a new desktop or upgrading an existing system.
Contact TECHNO HOUSE to confirm the latest price, stock availability, warranty terms, and compatibility with your selected Intel processor, DDR5 RAM, SSD, graphics card, and PC case.
A wide selection of computer hardware and PC components
Assistance with component compatibility
Guidance for choosing suitable desktop configurations
Convenient access to PC components in Bangladesh
Choose the ASUS PRIME H610M-R for a compact Intel desktop build featuring DDR5 memory, PCIe 4.0 graphics support, M.2 SSD connectivity, and flexible display options.
