Model: TUF GAMING A520M-PLUS II
Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
Supported RAM: 4 x DIMM, Max. 128GB, DDR4
Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
Features: Onboard RGB headers
EMI starts from ৳ 1,058/month
3 Year. Prices in ৳ are display-only and are not a charge.

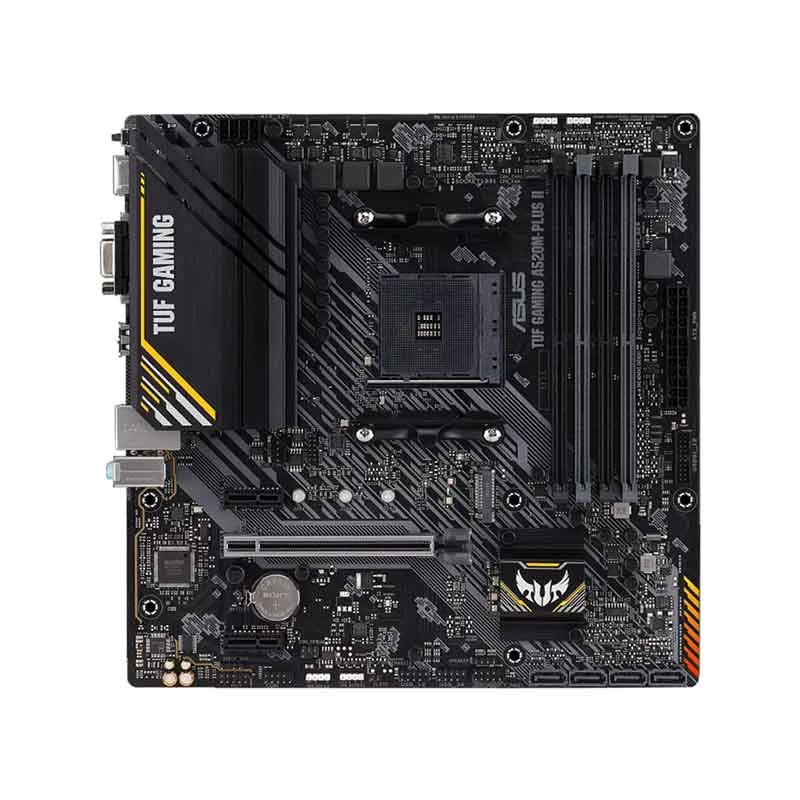

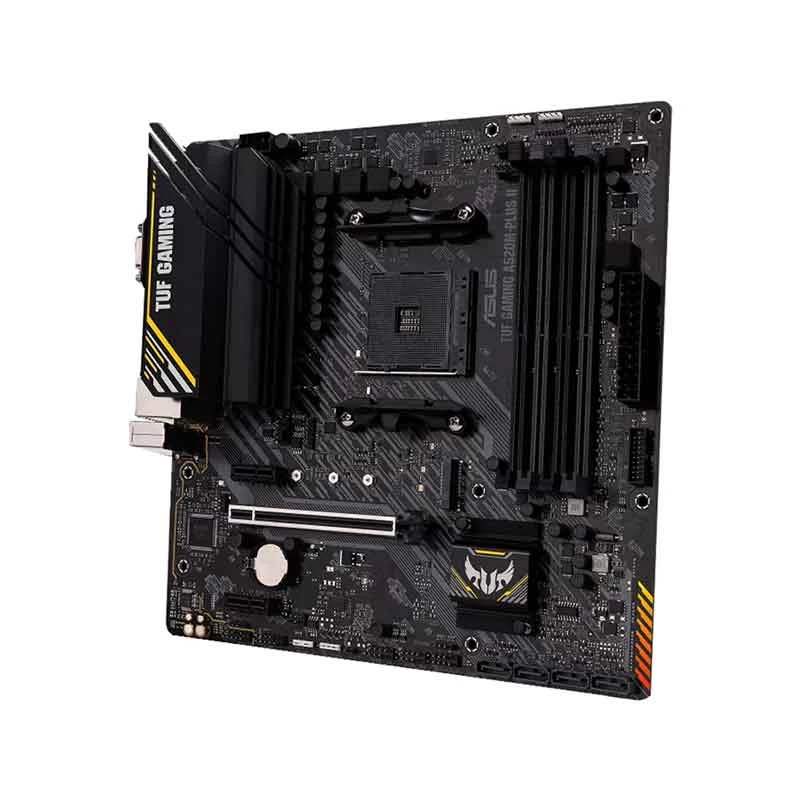

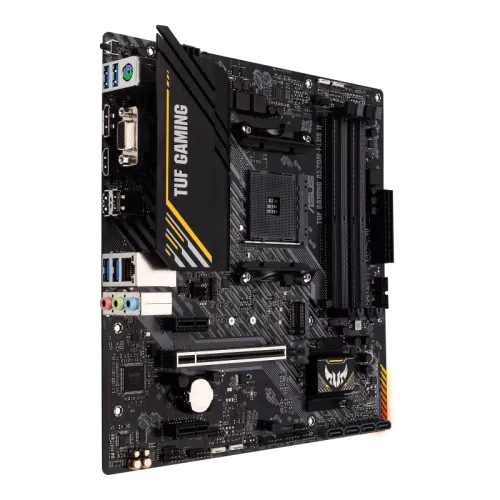

ASUS TUF GAMING A520M-PLUS II AMD AM4 Micro-ATX Motherboard
The ASUS TUF GAMING A520M-PLUS II is a durable and feature-rich Micro-ATX motherboard designed for AMD Ryzen desktop PC builds. Powered by the AMD A520 chipset and featuring the AM4 socket, it supports compatible AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series desktop processors. With four DDR4 memory slots, PCIe 3.0 graphics expansion, M.2 SSD connectivity, advanced cooling options, and ASUS TUF protection technologies, this motherboard provides a reliable platform for gaming, productivity, multitasking, and everyday computing.
The ASUS TUF GAMING A520M-PLUS II supports compatible AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series desktop processors. It offers a flexible platform for building a gaming PC, home workstation, or high-performance everyday desktop. CPU compatibility depends on the specific processor model and BIOS version.
Equipped with four DDR4 DIMM slots, this motherboard supports up to 128GB of system memory. Its dual-channel memory architecture helps improve memory bandwidth and system responsiveness.
Supported memory speeds include up to 4866MHz (OC), depending on the installed processor and memory configuration. AMD EXPO is not required; compatible memory profiles and overclocking settings should be configured according to the memory kit and system support.
The motherboard features one PCIe 3.0 x16 slot for a compatible graphics card and two PCIe 3.0 x1 slots for supported expansion devices. This provides flexibility for gaming graphics upgrades and additional hardware installations.
The ASUS TUF GAMING A520M-PLUS II features one M.2 slot supporting compatible PCIe 3.0 x4 and SATA-mode SSDs. This allows users to install a high-speed NVMe SSD for faster boot times, application loading, and file access.
Additionally, four SATA 6Gb/s ports support compatible SATA SSDs and traditional hard drives. RAID 0, RAID 1, and RAID 10 configurations are also supported.
With three display output options, this motherboard offers flexible monitor connectivity:
1 x HDMI 2.1 supporting up to 4K at 60Hz
1 x DisplayPort 1.2
1 x D-Sub (VGA)
These display outputs allow users to connect compatible monitors for productivity, multimedia, and everyday computing. Display functionality depends on the integrated graphics capabilities of the installed AMD processor.

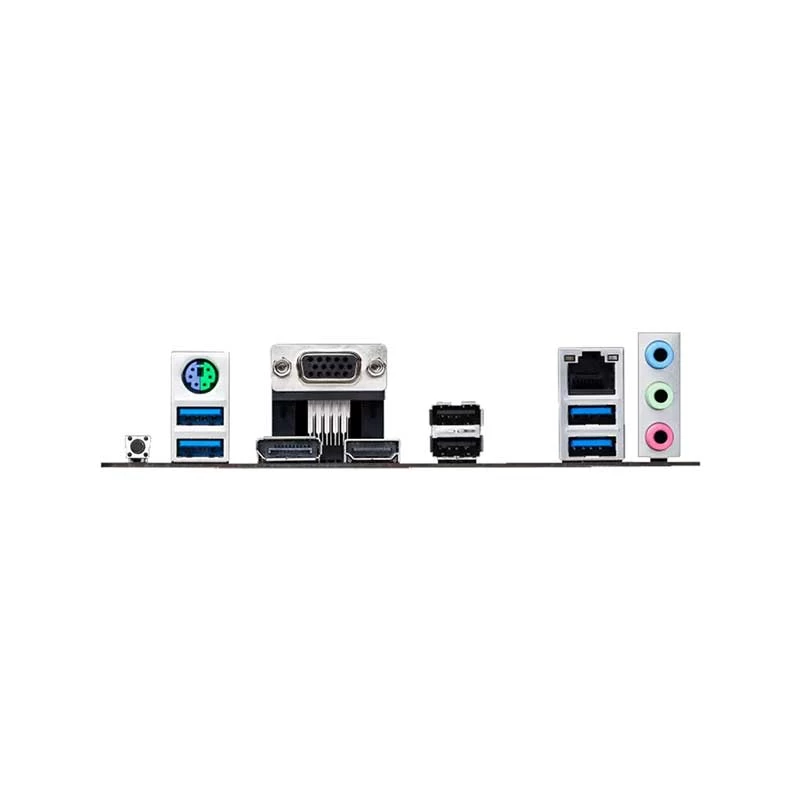

The ASUS TUF GAMING A520M-PLUS II provides practical connectivity for modern desktop systems, including:
4 x USB 3.2 Gen 1 Type-A ports on the rear panel
2 x USB 2.0 Type-A ports on the rear panel
Additional USB connectivity through internal headers
1 x Realtek Gigabit Ethernet port
1 x HDMI port
1 x DisplayPort
1 x VGA port
3 x audio jacks
1 x PS/2 keyboard and mouse combo port
1 x BIOS FlashBack button
Realtek Gigabit Ethernet and ASUS TUF LANGuard technology help provide reliable wired networking and network protection.
The onboard Realtek ALC887/897 7.1-channel High Definition Audio codec delivers audio support for compatible speakers and headsets. Audio shielding, premium audio capacitors, and dedicated audio PCB layers help improve sound quality for gaming, music, movies, and online communication.
Built with ASUS TUF protection technologies, this motherboard is designed for reliable everyday operation. Key features include:
DIGI+ VRM for precise power control
ESD Guards for electrostatic protection
TUF LANGuard for network protection
Overvoltage Protection
SafeSlot Core+ for enhanced PCIe slot durability
Stainless-Steel Back I/O
These technologies help protect important motherboard components and support long-term system reliability.
The motherboard features a VRM heatsink design and dedicated CPU and chassis fan headers to support compatible cooling configurations.
With two Addressable Gen 2 RGB headers and two Aura RGB headers, users can connect compatible RGB components and customize lighting effects through ASUS Aura Sync.
The dedicated BIOS FlashBack button provides a convenient way to update the motherboard BIOS using a USB drive and compatible BIOS file. This feature simplifies BIOS updating without requiring a fully configured system.
The ASUS TUF GAMING A520M-PLUS II features a compact Micro-ATX form factor, making it suitable for compatible desktop cases. Its combination of Ryzen processor support, four DDR4 memory slots, M.2 storage, PCIe expansion, and RGB customization makes it an excellent choice for budget-conscious gaming and productivity PC builds.
Looking for the ASUS TUF GAMING A520M-PLUS II AMD AM4 Micro-ATX Motherboard in Bangladesh? TECHNO HOUSE offers computer hardware and PC components for customers building a new gaming PC or upgrading an existing desktop.
Contact TECHNO HOUSE to confirm the latest price, stock availability, warranty terms, and compatibility with your selected AMD Ryzen processor, DDR4 RAM, SSD, graphics card, and PC case.
A wide selection of computer hardware and PC components
Assistance with hardware compatibility
Guidance for choosing suitable gaming and desktop configurations
Convenient access to PC components in Bangladesh
Choose the ASUS TUF GAMING A520M-PLUS II for a reliable AMD Ryzen desktop build featuring DDR4 memory, M.2 storage, PCIe 3.0 graphics expansion, and customizable RGB lighting.
