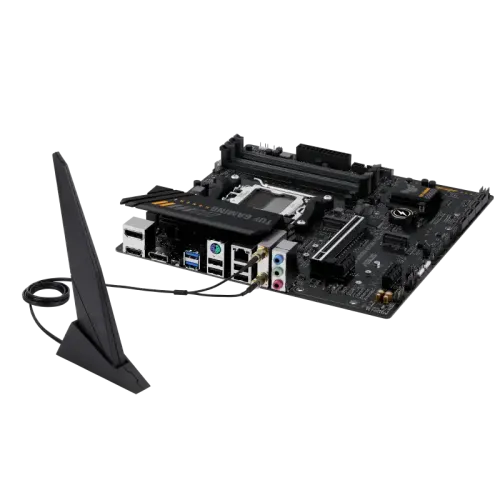

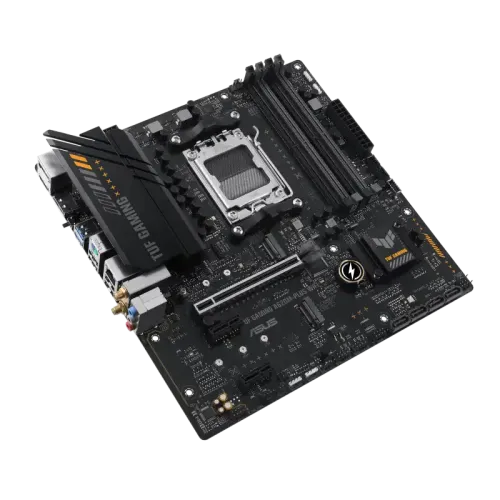

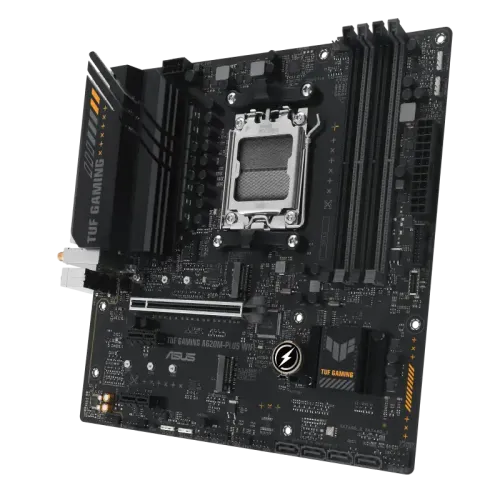

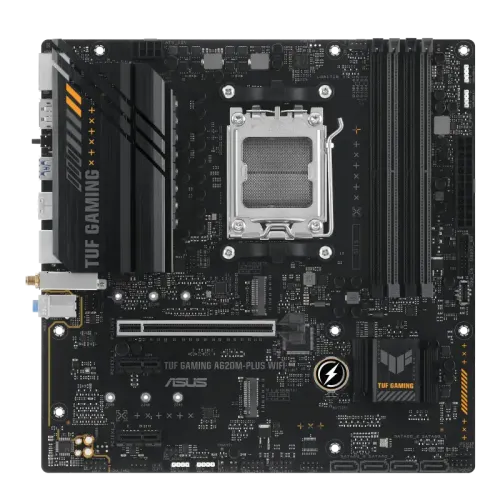

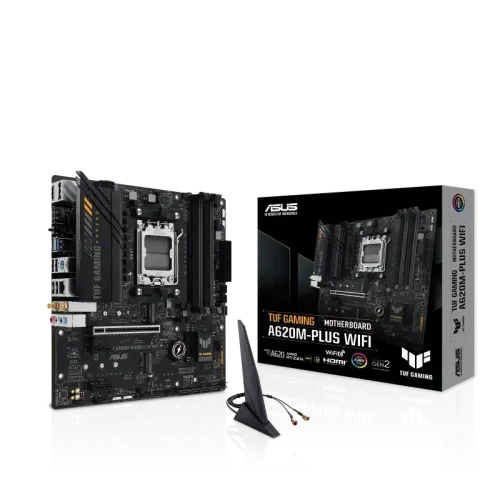

ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 M-ATX MOTHERBOARD

ASUS TUF GAMING A620M-PLUS WIFI AMD AM5 Micro-ATX Motherboard

The ASUS TUF GAMING A620M-PLUS WIFI is a durable and feature-rich Micro-ATX motherboard designed for modern AMD Ryzen desktop PC builds. Powered by the AMD A620 chipset and featuring the AM5 socket, it supports compatible AMD Ryzen 7000, 8000, and 9000 Series desktop processors. With DDR5 memory support, PCIe 4.0 graphics expansion, dual M.2 storage slots, built-in Wi-Fi 6, and 2.5Gb Ethernet, this motherboard provides an excellent foundation for gaming, productivity, multitasking, and high-performance desktop configurations.

AMD AM5 Socket and Ryzen Processor Support

The ASUS TUF GAMING A620M-PLUS WIFI supports compatible AMD Ryzen 7000, 8000, and 9000 Series desktop processors. Its modern AM5 platform delivers a reliable foundation for gaming, content creation, office applications, and demanding multitasking. Processor compatibility depends on the specific CPU model and required BIOS version.

DDR5 Dual-Channel Memory Support

Equipped with four DDR5 DIMM slots, this motherboard supports up to 192GB of system memory. Its dual-channel memory architecture helps deliver improved memory bandwidth and responsive performance.

Supported memory speeds include DDR5 4800MHz to 5200MHz and higher overclocked speeds up to 7600+ MT/s, depending on the processor and memory configuration. AMD EXPO support makes it easier to configure compatible memory kits for enhanced performance. ASUS OptiMem II technology helps optimize memory signal routing.

PCIe 4.0 Graphics Expansion

The motherboard features one PCIe 4.0 x16 slot for a compatible graphics card and two PCIe 3.0 x1 slots for additional expansion devices.

The primary PCIe x16 slot supports different lane configurations depending on the installed Ryzen processor. This provides flexibility for modern graphics cards and compatible expansion hardware.

Dual M.2 and SATA Storage Connectivity

The ASUS TUF GAMING A620M-PLUS WIFI features two M.2 slots supporting compatible PCIe 4.0 x4 NVMe SSDs. These high-speed storage interfaces help improve system boot times, application loading, and file-transfer performance.

Additionally, four SATA 6Gb/s ports provide connectivity for compatible SATA SSDs and traditional hard drives. AMD RAIDXpert2 technology supports RAID 0, 1, and 10 configurations for compatible storage devices.

Built-in Wi-Fi 6 and Bluetooth 5.3

With integrated Wi-Fi 6 technology, this motherboard provides wireless connectivity over supported 2.4GHz and 5GHz frequency bands. It also includes Bluetooth 5.3 for connecting compatible wireless peripherals, headphones, keyboards, mice, and other Bluetooth devices.

Its built-in wireless connectivity helps reduce cable clutter and provides convenient networking for modern desktop systems.

2.5Gb Ethernet Networking

The Realtek 2.5Gb Ethernet controller delivers faster wired networking compared with standard Gigabit Ethernet when used with compatible network equipment. ASUS TUF LANGuard technology helps protect the networking interface against electrical surges and electrostatic discharge.

HDMI and Dual DisplayPort Outputs

The motherboard provides three display output options:

• 2 x DisplayPort 1.4 supporting up to 8K at 60Hz

• 1 x HDMI 2.1 supporting up to 4K at 60Hz

These display connections offer flexibility for compatible monitors and multi-display configurations. Display functionality depends on the integrated graphics capabilities of the installed AMD Ryzen processor.

USB Connectivity and Front USB Type-C

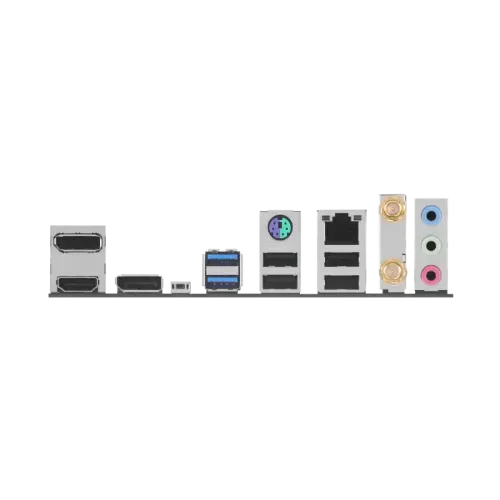

The ASUS TUF GAMING A620M-PLUS WIFI offers practical connectivity for modern desktop systems, including:

• 2 x USB 3.2 Gen 1 Type-A ports on the rear panel

• 4 x USB 2.0 Type-A ports on the rear panel

• Front USB 3.2 Gen 1 Type-C header

• Additional front USB 3.2 Gen 1 Type-A connectivity

• Additional USB 2.0 connectivity

• 1 x Realtek 2.5Gb Ethernet port

• 3 x audio jacks

• PS/2 keyboard and mouse combo port

• BIOS FlashBack button

The front USB Type-C header supports compatible PC cases, providing convenient access to modern USB connectivity.

Realtek 7.1-Channel High-Definition Audio

The onboard Realtek 7.1-channel Surround Sound High Definition Audio codec supports up to 24-bit/192kHz playback. Audio shielding, premium audio capacitors, and dedicated audio PCB layers help deliver clear sound for gaming, music, movies, and online communication.

ASUS TUF Protection Technologies

Built with ASUS TUF protection technologies, this motherboard is designed to support long-term reliability and dependable operation.

Key protection features include:

• DIGI+ VRM for precise power control

• ESD Guards for electrostatic protection

• TUF LANGuard for network protection

• Overvoltage Protection

• SafeSlot Core+ for enhanced PCIe slot durability

• Stainless-Steel Back I/O

These technologies help protect important motherboard components and support reliable system performance.

Advanced Cooling and Aura Sync RGB Lighting

The motherboard features a VRM heatsink design and dedicated CPU and chassis fan headers for compatible cooling configurations.

With three Addressable Gen 2 RGB headers and one Aura RGB header, users can connect compatible lighting components and customize their PC appearance using ASUS Aura Sync technology.

BIOS FlashBack and ASUS Q-Design

The dedicated BIOS FlashBack button makes BIOS updating convenient using a USB drive and compatible BIOS file.

ASUS Q-Design features, including M.2 Q-Latch, Q-DIMM, Q-LED Core, and Q-Slot, help simplify PC installation, component handling, and troubleshooting.

Compact Micro-ATX Design

Measuring approximately 24.4 x 24.4 cm, the ASUS TUF GAMING A620M-PLUS WIFI features a compact Micro-ATX form factor suitable for compatible desktop cases. Its combination of DDR5 memory, dual M.2 storage, Wi-Fi 6, 2.5Gb Ethernet, and PCIe 4.0 expansion makes it an excellent choice for modern AMD gaming and productivity PC builds.
