ASUS TUF GAMING B760M-PLUS II INTEL LGA1700 M-ATX GAMING MOTHERBOARD

Name: ASUS TUF GAMING B760M-PLUS II INTEL LGA1700 M-ATX GAMING MOTHERBOARD
Brand: ASUS
SKU: TH-SKU-093917
Price: 23400 BDT
Availability: InStock

0 reviewsIn stockSKU: TH-SKU-093917Brand: ASUS

Special price

৳ 23,400৳ 24,500Save ৳ 1,100 (4% OFF)

For B2B — register for wholesale price · Sign in

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 192GB
Back-Connect Design - No
Body Color - Black

Sale

Qty

Avail EMI offer

EMI starts from ৳ 1,950/month

3 Year. Prices in ৳ are display-only and are not a charge.

Specification

Basic Information

ModelTUF GAMING B760M-PLUS II

CPUIntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

ChipsetIntel B760 Chipset

Memory

Memory4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) ASUS Enhanced Memory Profile II (AEMP II) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

Graphics1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Expansion SlotsIntel Core Processors (14th& 13th& 12th Gen) 1 x PCIe 5.0 x16 slot IntelB760 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Supports

StorageSupports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th& 13th& 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10.

Ethernet

Ethernet1 x Realtek 2.5Gb Ethernet TUF LANGuard

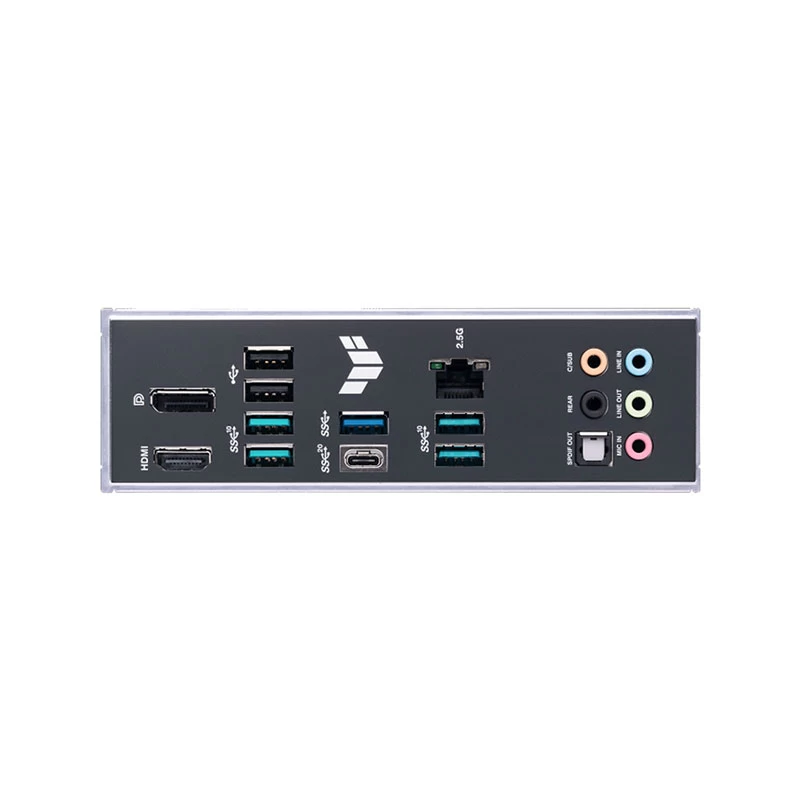

USBRear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 5 additional USB 2.0 ports

AudioRealtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers

Details

Q&A

Review

Brand: ASUS
Warranty: 3Y3 Year

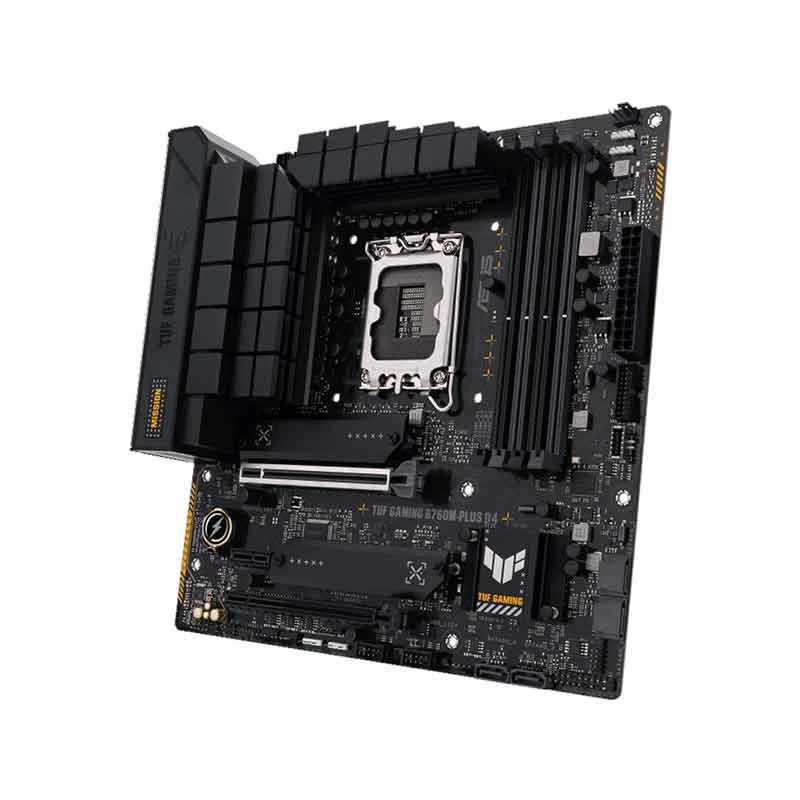

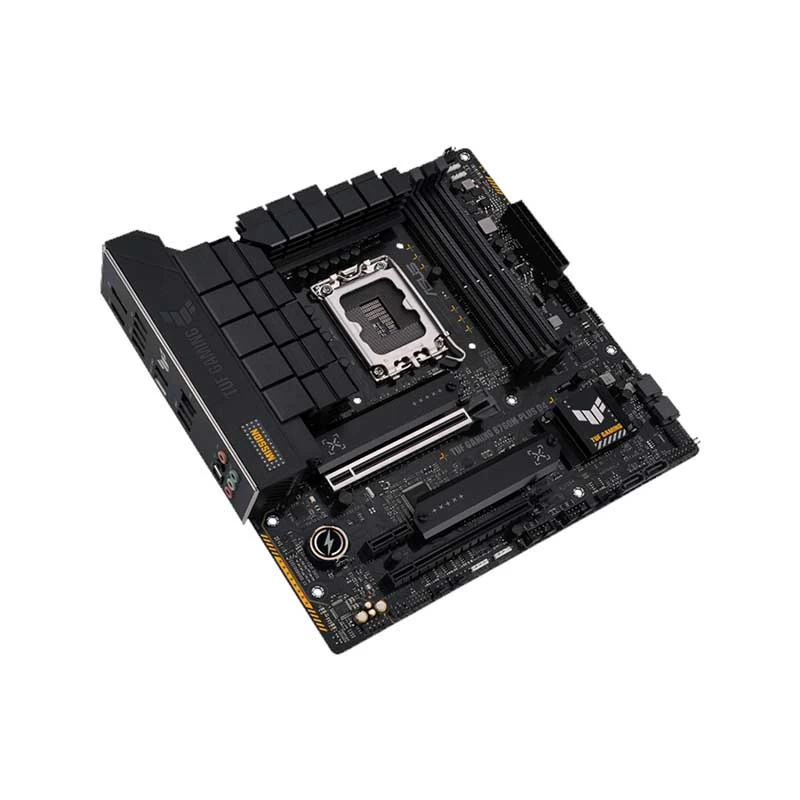

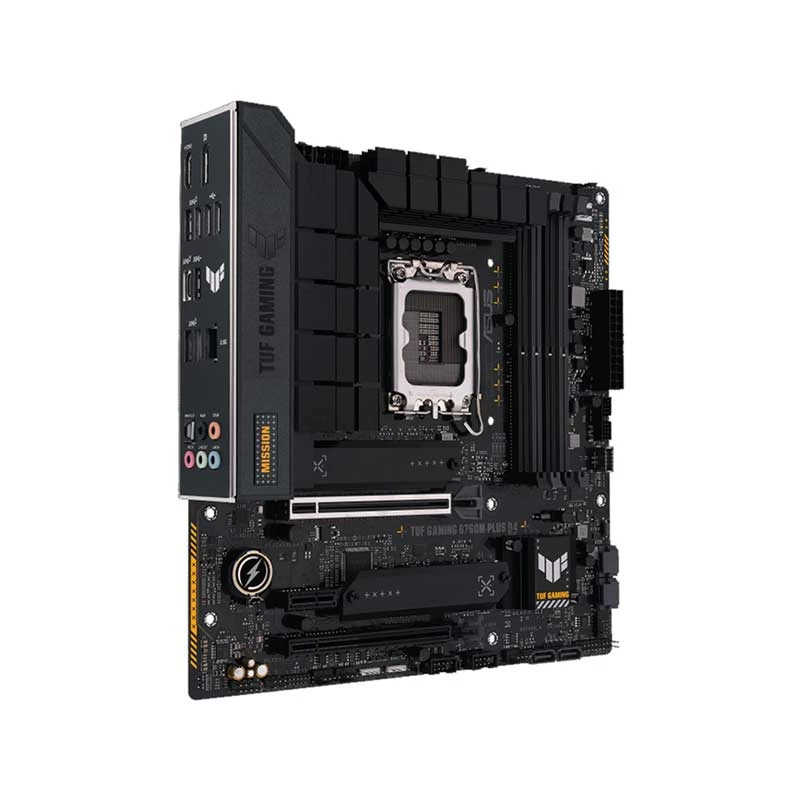

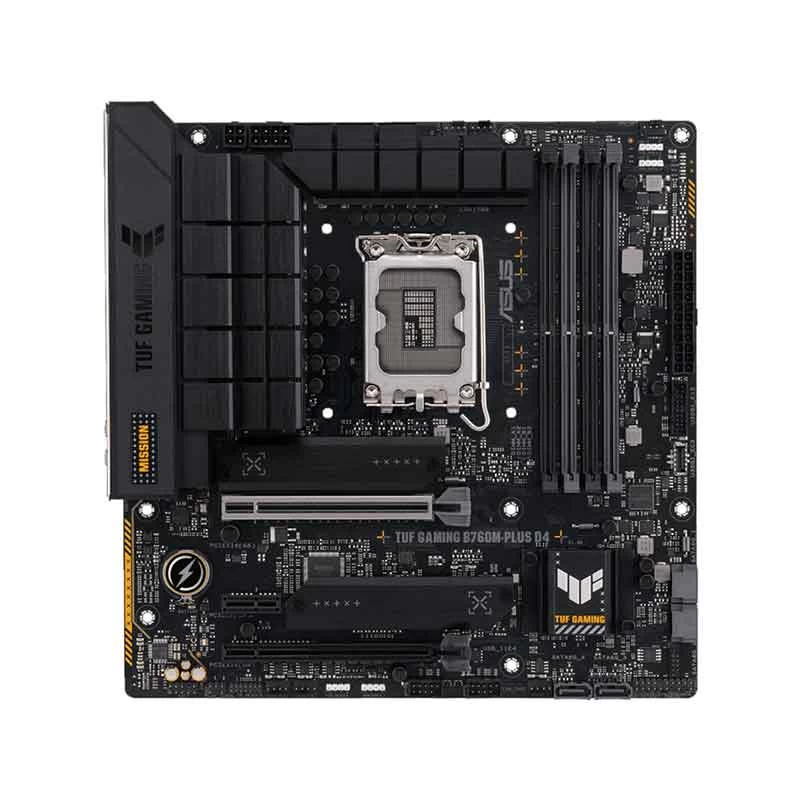

ASUS TUF GAMING B760M-PLUS II Intel LGA1700 Micro-ATX Gaming Motherboard

The ASUS TUF GAMING B760M-PLUS II is a high-performance Micro-ATX motherboard designed for gamers, PC enthusiasts, and professional users. Powered by the Intel B760 chipset and featuring the LGA1700 socket, it supports compatible Intel 14th, 13th, and 12th Gen Core processors, along with selected Pentium Gold and Celeron processors.

With DDR5 memory support, PCIe 5.0 graphics connectivity, three M.2 slots, 2.5Gb Ethernet, and advanced TUF durability features, this motherboard provides an excellent foundation for building a powerful and reliable gaming PC.

Intel LGA1700 Socket and B760 Chipset

Built with the Intel B760 chipset, this motherboard supports compatible Intel Core 14th, 13th, and 12th Gen desktop processors. It also supports selected Intel Pentium Gold and Celeron processors, offering flexibility for different PC configurations.

DDR5 Memory Support

The motherboard features four DDR5 DIMM slots with dual-channel memory architecture and supports up to 192GB of system memory. With Intel XMP and ASUS Enhanced Memory Profile II (AEMP II) support, users can optimize memory performance for gaming, multitasking, and demanding applications. Supported memory speeds depend on the CPU and memory configuration.

PCIe 5.0 Graphics Performance

Featuring a PCIe 5.0 x16 slot, the ASUS TUF GAMING B760M-PLUS II provides high-bandwidth connectivity for modern graphics cards. Additional PCIe 4.0 x4 and PCIe 3.0 x1 slots allow users to expand their systems with compatible components.

Triple M.2 Storage Support

Enjoy fast storage performance with three M.2 slots and four SATA 6Gb/s ports. The M.2 slots support PCIe 4.0 storage devices, with the third M.2 slot operating in PCIe 4.0 x2 mode. This flexible storage design allows users to combine high-speed NVMe SSDs with additional SATA storage drives.

High-Speed 2.5Gb Ethernet

The integrated Realtek 2.5Gb Ethernet controller delivers fast and reliable wired networking for online gaming, large file transfers, and everyday connectivity. ASUS TUF LANGuard helps protect the network connection against electrical surges and static discharge.

Advanced Cooling and Power Design

Designed for stable operation, the motherboard features a robust digital power solution with DrMOS, DIGI+ VRM technology, and dedicated VRM heatsinks. M.2 heatsinks help maintain SSD performance, while multiple fan and AIO pump headers provide flexible cooling options.

High-Speed USB Connectivity

The motherboard offers a comprehensive selection of USB connections, including a rear USB 20Gbps Type-C port, USB 10Gbps Type-A, USB 5Gbps ports, and USB 2.0 ports. A front USB 10Gbps Type-C header provides convenient connectivity for compatible PC cases.

Gaming Audio and Display Connectivity

Featuring Realtek 7.1-channel High Definition Audio, audio shielding, premium audio capacitors, and a dedicated audio PCB design, this motherboard delivers an immersive audio experience. HDMI 2.1 and DisplayPort 1.4 outputs support compatible display configurations when used with a processor that has integrated graphics.

ASUS TUF Gaming Durability

Built with ASUS TUF Protection technologies, the motherboard includes SafeSlot Core+, ESD Guards, overvoltage protection, TUF LANGuard, and a stainless-steel rear I/O panel. Additional features such as BIOS FlashBack, M.2 Q-Latch, PCIe Q-Release, Q-LED, and Aura Sync addressable RGB headers make installation, maintenance, and customization easier.
