GIGABYTE AMD # B840M EAGLE WIFI6, Socket AM5, 2 x DDR5 DIMM, 4 x SATA 6Gb/s

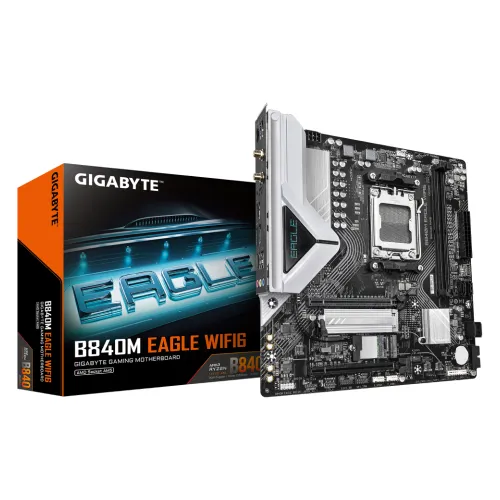

GIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard

The GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AMD Socket AM5 platform. Powered by the AMD B840 chipset, the GIGABYTE Motherboard ensures stable computing with a digital 5+2+2 phases VRM solution. Dual channel DDR5 architecture supports up to 128GB across two DIMMs with speeds reaching 7600 MT/s overclocked. AMD EXPO and XMP profiles optimize memory, while D5 Bionic Corsa enhances infinite memory performance. The GIGABYTE B840M EAGLE WIFI6 Motherboard has EZ-Latch PCIe and M.2 slots feature quick release and screwless design for effortless installation. M.2 heatsinks also use screwless EZ-Latch design, supported by VRM Thermal Armor Advanced and M.2 Thermal Guard. The GIGABYTE Motherboard includes two M.2 connectors and four SATA 6Gb/s ports with RAID 0,1,5,10 support. PCIe UD Slot provides 10X strength for graphics cards and improved heat dissipation. The GIGABYTE B840M EAGLE WIFI6 Motherboard integrated AMD Radeon Graphics supports DisplayPort 1.4 at 3840x2160@144Hz and HDMI 2.1 at 4096x2160@60Hz with HDR. Realtek 2.5GbE LAN and Realtek Wi-Fi 6 RTL8851BE with Bluetooth 5.3 deliver fast networking. Expansion includes PCIe 4.0 x16 CPU slot and PCIe 3.0 x4 chipset slot. USB connectivity covers USB 3.2 Gen1, USB Type-C header, and multiple USB 2.0 ports. The GIGABYTE B840M EAGLE WIFI6 AM5 Motherboard has internal connectors include ATX power, fan and pump headers, RGB Gen2 headers, TPM header, and Clear CMOS jumper. Back panel offers PS/2, Q-Flash Plus button, SMA antenna connectors, RJ-45, audio jacks, HDMI, and DisplayPort. Licensed AMI UEFI BIOS with 256 Mbit flash supports Q-Flash, Smart Backup, and GCC software. Micro ATX form factor ensures compatibility with Windows 11 and Windows 10 64-bit systems.
