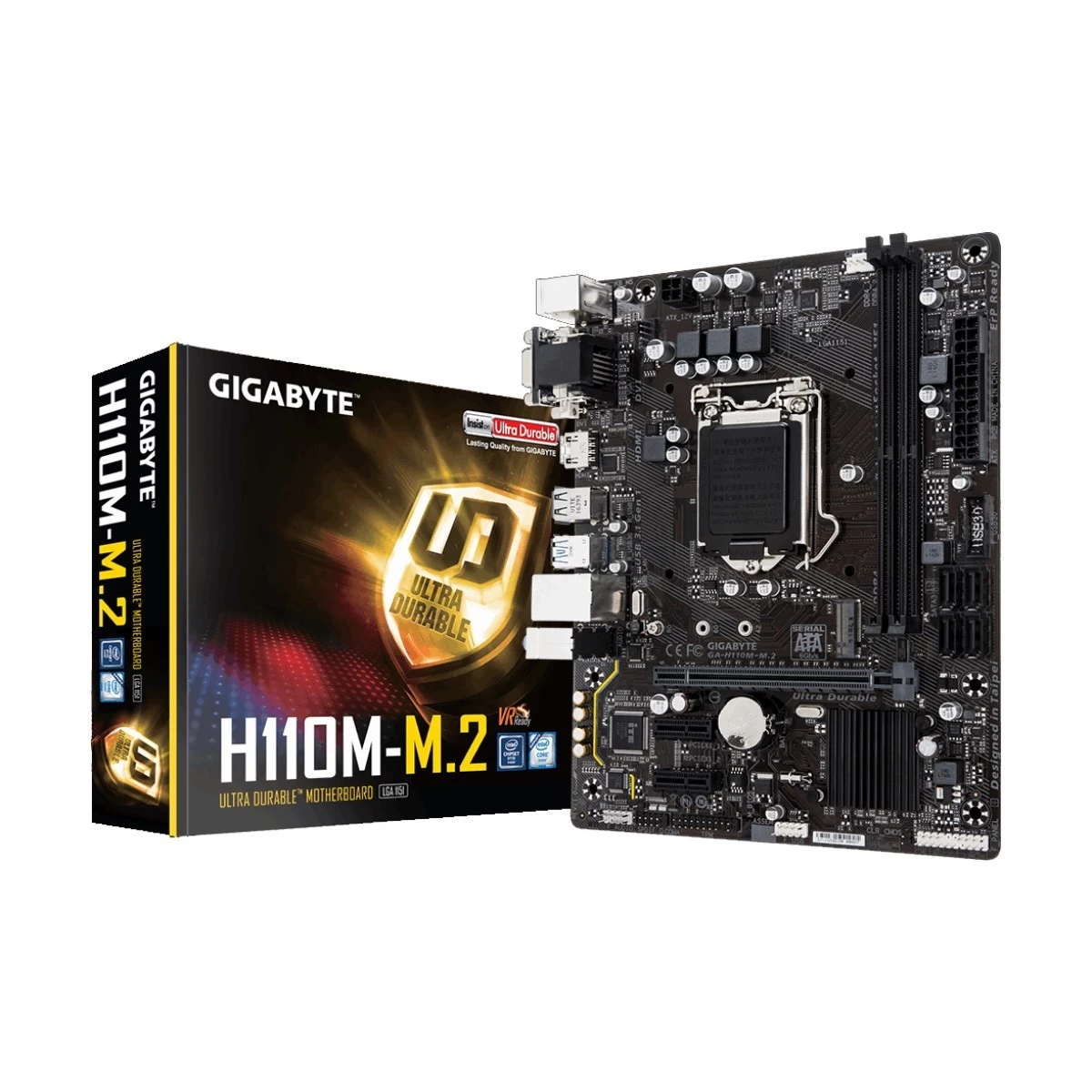

Gigabyte GA-H110M-M.2 DDR4 6th/7th Gen LGA1151 Socket Mainboard

Features of Gigabyte GA-H110M-M.2 Motherboard In Bangladesh

Brand - Gigabyte, Model - Gigabyte GA-H110M-M.2, Chipset Brand - Intel, Chipset - Intel H110 Express, CPU Sockets - LGA1151, Built-in Processor - No, Supported CPU - 6th/7th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors, Generation - 6th/7th, Back-Connect Design - No, Cable Management - Front, Memory Type - DDR4, Memory MHz - 2400/ 2133MHz, Memory Channel - Dual, Memory Slot - 2, Memory Max. - 32GB, Optane Memory Support - No, Graphics - Integrated, Graphics Chipset - Integrated With Processor, Multi-GPU Support - No, PCI Express Slot - 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x2 SSD support), LAN Chipset - Intel GbE LAN, LAN Speed (Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC887, Audio Channel - 2/4/5.1/7.1-channel, Wi-Fi - No, USB Port - 2 x USB 3.1 Gen 1, 4 x USB 2.0/1.1, VGA Port - 1, DVI Port - 1, HDMI Port - 1, SATA Port - 4 x SATA, BIOS Type - 1 x 64 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, CrossFire Support - No, Sli Support - No, Thunderbolt - No, RGB Support - No, Approx. Power Consumption - 60W, Form Factor - Micro-ATX, Supported Operating System - Windows 7 / 8.1 / 10, Body Color - Brown, Special Features - 3D OSD, AutoGreen, Cloud Station, EasyTune, Fast Boot, Smart Backup, Smart Keyboard, Smart TimeLock, System Information Viewer, USB Blocker, Q-Flash, Xpress Install., Others - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.1 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x serial port header, 1 x Trusted Platform Module (TPM) header, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 mouse port, 1 x PS/2 Keyboard port, 1 x RJ-45 port, 3 x audio jacks (Line In, Line Out, Mic In), H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control., Part No - GA-H110M-M.2, Warranty - 3 year, Country of Origin - Taiwan, Made in/ Assemble - China
