Product ID: GIG-LGA1700-14·GIGABYTE
Model: B660M Gaming DDR4
LGA1700 socket: Supports 12th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Fast 2.5 GbE GAMING LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
EMI starts from ৳ 1,083/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU |
|---|---|---|
| Chipset | Intel B660 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out | |
| Expansion Slots | PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 3.0 standard.) |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready | |
| Memory | Type | DDR4 |
| Slots | 2 x DIMM | |
| Supported Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |

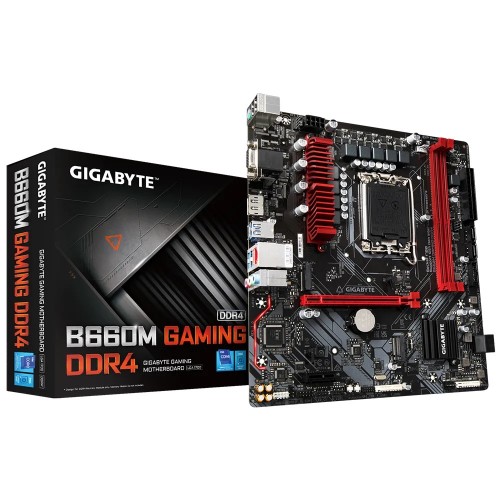

GIGABYTE B660M Gaming DDR4 is a 14th, 13th, and 12th Gen processor-supported DDR4 Micro ATX Motherboard. It supports 14th, 13th, and 12th generation Intel Core Series processors. This motherboard has dual-channel non-ECC unbuffered DDR4 with 2 DIMMs. It also has a 6+2+1 phase hybrid digital VRM with a MOS heatsink. It features a Fast 2.5 GbE Gaming LAN with Bandwidth Management, built-in WiFi (802.11ac and Bluetooth 4.2 with AERO antenna. It can house dual Ultra-Fast NVMe PCIe 4.0 x 4 M.2. The rear has a SuperSpeed USB 3.2 Gen 1 Type-C port for fast and versatile connections with high-quality audio capacitors and audio noise guards. It also supports RGB Fusion 2.0, which makes it support addressable LEDs and RGB LED strips. It has a Smart Fan 6, which features multiple temperature sensors and hybrid fan headers with a fan stop. B660M Gaming DDR4 motherboard has Q-Flash Plus Update BIOS without installing the CPU, memory, or graphics card. This motherboard is Windows 11-ready. This MOBO cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading with 6+2+1 phase low RDS (on) MOSFETs. It also has solid capacitors to improve transient response and minimize oscillation, along with an 8-pin solid-pin CPU power connector. The GIGABYTE B660 motherboards are ready to work with the PCIe 4.0 devices, which are expected to experience twice the bandwidth as the current PCIe 3.0 devices. To reach high speeds and maintain good signal integrity, GIGABYTE R&D uses a low-impedance PCB to provide maximum performance. The GIGABYTE B660M Gaming DDR4 12th Gen Micro ATX Motherboard offers a 3-year warranty.
