Product ID: GIG-H510M-2·GIGABYTE

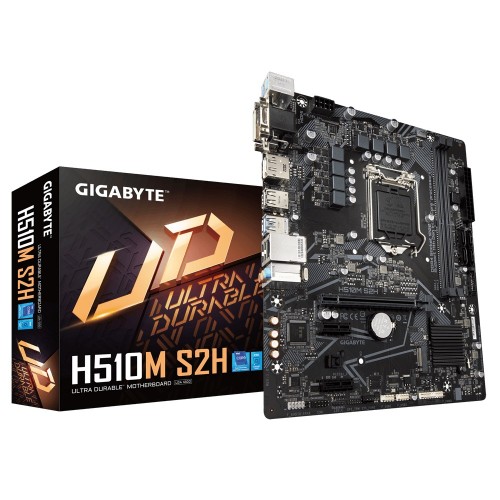

Model: H510M S2H
Supports 11th and 10th Gen Intel Core Processors
Dual-Channel DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4
4 Display Interfaces Support
EMI starts from ৳ 800/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. |
|---|---|---|
| Chipset | Intel H510 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.0cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel | |
| Expansion Slots | PCI | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.) |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Memory | Type | Dual channel memory architecture |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
GIGABYTE H510M S2H Motherboard supports 11th and 10th Gen Intel Core Series Processors. It features Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs and Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It comes with GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. It comes with 4 Display Interfaces Support. It comes with high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintain their performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The fan can stop completely below users' specified temperature point. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. It is very Simple and Easy Use. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. It has 3 Years Warranty
