Product ID: GIG-GA-H110M-S2PH·GIGABYTE

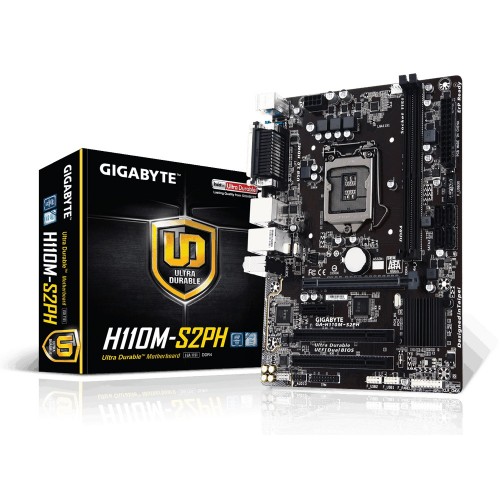

Model: GA-H110M S2PH-DDR4
Supports 6th Generation Intel Core Processor
Dual Channel DDR4, 2 DIMMs
8-channel HD Audio with High-Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
EMI starts from ৳ 750/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Specifications | Chipset | Intel® H110 Express Chipset |
|---|---|---|
| Supported Processors | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU | |
| Max Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Onboard Video | Integrated Graphics Processor - Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 1024 MB | |
| Onboard Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out | |
| Onboard LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Warranty | 3 Years | |
| Attributes | Socket | LGA1151 |
| Form Factor | Micro-ATX | |
| Memory Type | DDR4 |
Gigabyte GA-H110M S2PH-DDR4
Supports 6th Generation Intel Core Processor
Dual Channel DDR4, 2 DIMMs
8-channel HD Audio with High-Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
HDMI 1.4, D-Sub ports for multiple displays
Realtek GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE APP Center, simple and easy to use
GIGABYTE UEFI DualBIOS Technology
Support Intel Small Business Basics
03 Years warranty
