Product ID: GIG-LGA1700-22·GIGABYTE
Model: H610M S2H DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 64GB 5600
Graphics Output: 2x HDMI, 1x DisplayPort
Features: Realtek GbE LAN Chip
EMI starts from ৳ 958/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU |
|---|---|---|
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Expansion Slots | PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | Type | DDR5 |
| Slots | 2 x DDR DIMM sockets | |
| Supported Memory | 13th Generation Intel Core i9/i7 processors: Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory | up to 64 GB (32 GB single DIMM capacity) of system memory |

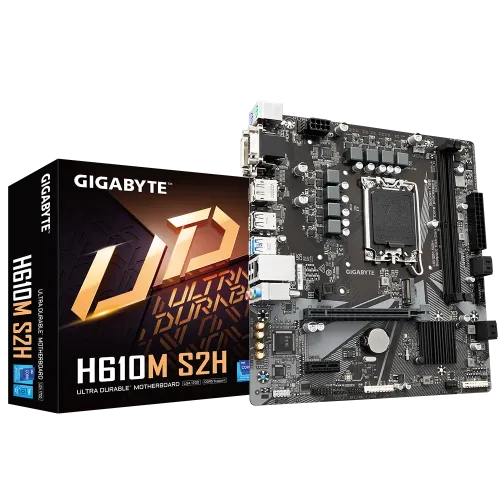

The GIGABYTE H610M S2H DDR5 mATX Motherboard is a stable and feature-rich motherboard that supports Intel Core 14th, 13th, and 12th generation CPUs. For optimal performance, this motherboard's 6+1+1 Hybrid Phases Digital VRM Design ensures consistent power delivery. Gen3 x4 M is present.Two slots provide fast SSD storage, and PCIe 4.0* architecture enables high-speed data transfer. This motherboard is suitable for various multimedia setups since it has connectors for DisplayPort, HDMI, DVI-D, and D-Sub, which allow it to support several display layouts. Its Anti-Sulfur Resistor technology extends its lifespan and protects against environmental toxins. Smooth performance and effective multitasking are made possible with the GIGABYTE H610M S2H DDR5 mATX Motherboard, which supports dual-channel non-ECC unbuffered DDR5 memory with two DIMM slots. For online operations, its GbE LAN with bandwidth control guarantees dependable network access. With the help of Audio Noise Guard technology and premium audio capacitors, this motherboard produces rich, immersive audio. In addition, it has hybrid fan headers and Smart Fan 6 technology, which enables effective cooling with silent operation and various temperature sensors. When not in use, the FAN STOP function stops the fan, further improving energy economy. Users may effortlessly control and adjust a variety of system settings using the GIGABYTE APP Center, which makes it easy to maximize performance and personalize the motherboard to one's tastes. Anti-sulfur resistors are another feature that highlights the motherboard's robustness and lifespan by guaranteeing steady functioning for lengthy periods. With its high performance, dependability, and ease, the GIGABYTE H610M S2H DDR5 mATX Motherboard is a great option for a variety of computing applications.
In Bangladesh, you can get the original GIGABYTE H610M S2H DDR5 mATX Motherboard From Technohouse. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Technohouse Shop to get yours at the lowest price. The GIGABYTE H610M S2H DDR5 mATX Motherboard comes with 3-year warranty.
