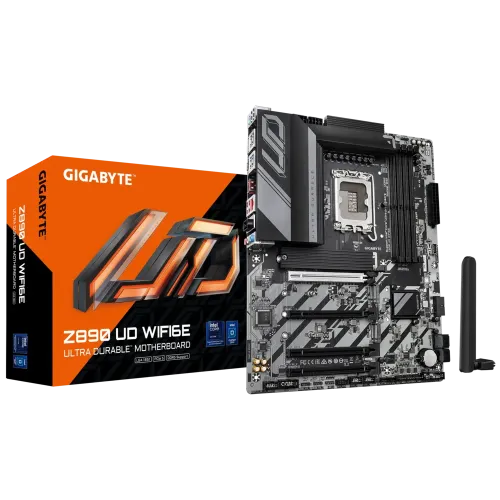

Product ID: GIG-Z890·GIGABYTE
Model: Z890 UD WIFI6E
Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
Graphics Output: 1x USB4 USB Type-C, 1x DisplayPort
Features: 3x M.2 slots, Wi-Fi 6E, Bluetooth 5.3
EMI starts from ৳ 2,583/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU |
|---|---|---|
| Chipset | Intel Z890 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel | |
| Expansion Slots | PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| Memory | Type | DDR5 |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard supports Intel Core Ultra CPUs (Series 2), providing great performance and dependability for gaming and professional applications. This motherboard supports up to 256 GB of DDR5 memory across four DIMM slots with XMP compatibility, and it boasts a digital twin 12+1+2 phases VRM system and D5 Bionic Corsa for unmatched memory performance. Advanced features include AI Perfdrive for BIOS preset optimization and an intuitive interface with multi-theme, AIO fan control, and Q-Flash auto scan capabilities. With three M.2 slots, including one PCIe 5.0 x4 slot, the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard offers incredibly quick storage options. USB4 Type-C, DisplayPort, and effective networking features such as Wi-Fi 6E 802.11ax and 2.5GbE LAN improve connectivity. For better cooling, the effective thermal design incorporates M.2 Thermal Guard and VRM Thermal Armor Advanced. Strong expansion capabilities include a variety of internal I/O connectors, such as RGB headers and fan headers, and several PCIe slots that support different configurations. Intel HD Graphics with USB4 and DisplayPort outputs are supported by the onboard graphics. The Realtek Audio CODEC manages audio and produces multi-channel, high-definition sound. For high-performance setups, the Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard is a great option because it is dependable and supports both ECC and non-ECC memory modules. Usability is further improved by extra features such as the new power monitor in HWinfo for real-time CPU power phase monitoring and the EZ-Latch PCIe x16 slot for simple GPU installation. A complete and potent base for any sophisticated PC design, the Gigabyte Z890 UD WIFI6E LGA 1851 ATX motherboard is compatible with Windows 11 64-bit and includes pre-installed applications such as Norton Internet Security.
In Bangladesh, you can get original Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard From Technohouse. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest Technohouse Shop to get yours at lowest price. The Gigabyte Z890 UD WIFI6E LGA 1851 ATX Motherboard comes with a 3-year Warranty.
