Product ID: GIG-LGA1200-3·GIGABYTE

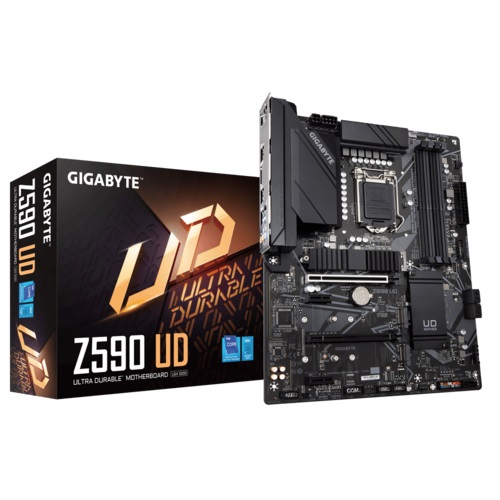

Model: Z590 UD
Supports 11th and 10th Gen Intel Core Processors
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
Dual-Channel DDR4, 4 DIMMs
Fast 2.5GbE LAN
EMI starts from ৳ 1,792/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
|---|---|---|
| Chipset | Intel Z590 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out | |
| Expansion Slots | PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) | |
| Memory | Type | Dual-channel memory architecture |
| Slots | 4 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
GIGABYTE Z590 UD Intel 10th and 11th Gen ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors. It supports Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs and Direct 12+1 Phases Digital VRM Solution with 50A DrMOS with Shielded Memory Routing for Better Memory Overclocking. It has an Enlarged VRM Heatsink with Air-Flow Grooving to Increased Surface Contact. It features a Fast 2.5GbE LAN with Bandwidth Management. It comes with Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard. It features USB 3.2 Gen2 and Front USB Type-C for Fast and Versatile Connections and Pre-installed IO Shield for Easy and Quick Installation. Supports RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 years warranty.
