Product ID: GIG-Z790-3·GIGABYTE

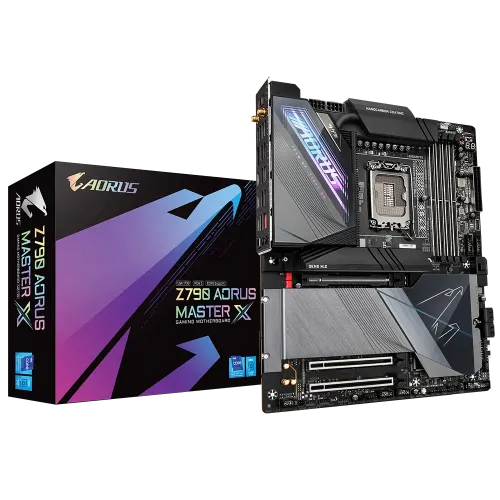

Model: Z790 AORUS MASTER X
Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C)
Graphics Output: 1 x DisplayPort
Features: Marvell AQtion 10GbE LAN & Intel Wi-Fi 7
EMI starts from ৳ 6,250/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|---|---|---|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.0cm | |
| Audio | Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out | |
| Expansion Slots | PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Memory | Type | DDR5 |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory | 128GB (32 GB single DIMM capacity) |
The GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard is a high-end motherboard built for gamers and enthusiasts who want exceptional performance. This motherboard is compatible with Intel Core 14th and 13th generation processors, guaranteeing that it is ready for Intel's latest and best CPUs. The motherboard features a strong 20+1+2 power phase architecture that ensures optimal power supply to your CPU for optimum performance and stability. With 4 DIMM slots and XMP 3.0 memory module compatibility, you may experience lightning-fast memory speeds and enough capacity for multitasking and gaming. This motherboard has a PCIe 5.0 x16 slot with 10X strength for your graphics card, which provides enough bandwidth for the newest GPUs while also future-proofing your system. M.2 heatsinks with screwless designs make it simple to install and cool your M.2 NVMe SSDs, assuring maximum performance. The PCIe 5.0 x16 slot and M.2 slots have a quick-release design that makes hardware installation and upgrades easier. The user-centered BIOS interface provides a straightforward user experience with a Quick Access option, allowing users to adjust and optimize their system settings more easily. You may experience very high storage speeds for your games, programs, and data with five M.2 slots, including one PCIe 5.0 x4 slot. The VRM Thermal Armor Fins-Array and M.2 Thermal Guard XL assist in heat dissipation, keeping your system cool and stable even during strenuous workloads. The GIGABYTE Z790 AORUS MASTER X Motherboard has a 10GbE LAN and Wi-Fi 7, as well as an ultra-high gain antenna, for lightning-fast and dependable network access. You have plenty of connectivity choices for all your peripherals and devices with DisplayPort, a front USB-C connector with 10Gb/s transfer rates, and front and twin rear USB-C ports with 20Gb/s transfer speeds. The audio capabilities of the motherboard are excellent, with the ALC1220 audio codec and a back ESS SABRE Hi-Fi 9118 DAC providing high-quality sound for gaming and entertainment.
In Bangladesh, you can get original GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard From Technohouse. We have a large collection of latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Technohouse Shop to get yours at lowest price. The GIGABYTE Z790 AORUS MASTER X E-ATX Motherboard comes with 3 years warranty.
