Product ID: GIG-LGA1700-23·GIGABYTE

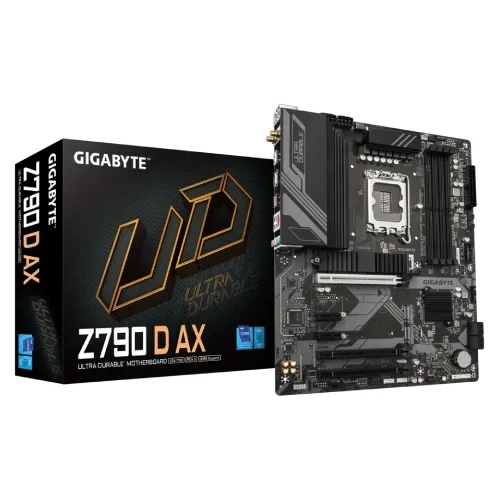

Model: Z790 D AX
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 4 x DDR5 DIMMs 7600(OC), up to 256 GB
Graphics Output: 1 x HDMI, 1 x DisplayPort
Features: 2.5GbE LAN, WiFi-6E, Bluetooth 5.3
EMI starts from ৳ 2,458/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|---|---|---|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out | |
| Expansion Slots | PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Memory | Type | DDR5 |
| Slots | 4 x DIMM sockets | |
| Supported Memory | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory | 128GB (32 GB single DIMM capacity) |
The Gigabyte Z790 D AX DDR5 ATX Motherboard is a cutting-edge Gigabyte motherboard designed for both amateurs and pros. This Gigabyte Z790 Motherboard is designed to accommodate the latest Intel processors via the LGA 1700 socket and includes full DDR5 memory support up to 192GB over four dual-channel DIMM slots for blazing-fast data access that improves multitasking and gaming performance. Its powerful digital power supply system, which is based on the Ultra Durable architecture, provides great stability, making the Gigabyte 790 motherboard an excellent choice for overclockers and users who want continuous, consistent power under heavy loads. The GIGABYTE Z790 D AX motherboard is packed with next-generation expansion options, such as a PCIe 5.0 x16 slot for future-proof graphics performance and several M.2 ports with integrated thermal guards for maximum storage cooling. Adding to its excellent connection, the inbuilt WiFi 6E and 2.5GbE LAN make this a different Gigabyte WiFi Motherboard, giving ultra-fast wireless speeds and dependable network performance, while a suite of extra ports and USB interfaces support a wide range of devices. The Gigabyte Z790 D AX DDR5 ATX Motherboard, which includes advanced thermal management features such as Smart Fan 6 and a user-friendly BIOS update via Q-Flash Plus, is not only designed for high-end performance but also for exceptional ease of use and future upgrades, making it an outstanding, choice for Desktop PC enthusiasts.
In Bangladesh, you can get the original GIGABYTE Z790 D AX DDR5 ATX MotherboardFrom Technohouse. We have a large collection of the latest Gigabyte Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Technohouse Shop to get yours at the lowest price. The GIGABYTE Z790 D AX DDR5 ATX Motherboard has 03 Year Warranty.
