Product ID: GIG-LGA1700-26·GIGABYTE

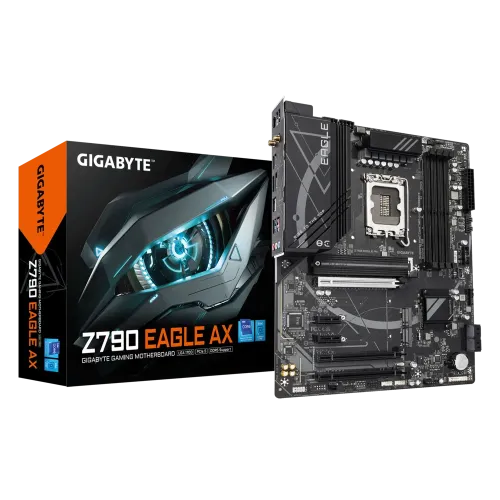

Model: Z790 EAGLE AX
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E
EMI starts from ৳ 2,583/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
|---|---|---|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out | |
| Expansion Slots | PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Memory | Type | DDR5 |
| Slots | 4 x DDR5 DIMM sockets | |
| Supported Memory | 14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory |
The GIGABYTE Z790 EAGLE AX motherboard is a high-performance platform ideal for demanding applications like gaming and content production. It is designed to accommodate the latest 14th, 13th, and 12th Gen Intel CPUs using the LGA1700 socket. It provides fast and efficient performance for demanding tasks and multitasking, with four DIMM slots supporting up to 192GB of DDR5 memory and speeds up to 7600 MHz (overclocked). Its display connection options include DisplayPort and HDMI outputs. A strong Twin 12*+1+1 Phases Digital VRM Solution, which offers steady and dependable power delivery and is necessary to sustain performance under high loads, is one of the GIGABYTE Z790 EAGLE AX's key characteristics. Dual-channel DDR5 with XMP 3.0 Memory Modules is supported by the motherboard, enhancing memory performance and stability. With three PCIe 4.0 x4 M.2 connections, there are many storage options and fast data transmission and large storage capacity. In addition to preventing SSD overheating, the M.2 Thermal Guard and sophisticated thermal design guarantee VRM power stability. The quick-release design of the EZ-Latch PCIe 5.0 x16 slot facilitates installation simplicity and makes graphics card upgrades simple. Thanks to Intel Wi-Fi 6E (802.11ax) and Realtek 2.5GbE LAN, networking is dependable and quick. In addition, the motherboard offers a wide range of connectivity choices, such as DisplayPort, HDMI, and a rear USB-C connector that supports 10Gb/s data transmission. With its various temperature sensors and hybrid fan headers with FAN STOP technology, the Smart Fan 6 feature provides sophisticated cooling solutions that are specifically matched to the requirements of the system. The update procedure is made simpler by the Q-Flash Plus function, which enables BIOS upgrades without requiring the installation of the CPU, RAM, or graphics card. For those looking for a reliable and feature-rich motherboard that supports the newest Intel CPUs and cutting-edge technology and offers exceptional performance and dependability for any high-end computing demands, the GIGABYTE Z790 EAGLE AX is a great option.
In Bangladesh, you can get the original GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard From Technohouse. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Technohouse Shop to get yours at the lowest price. The GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard comes with 3-year warranty.
