Product ID: GIG-LGA1700-27·GIGABYTE

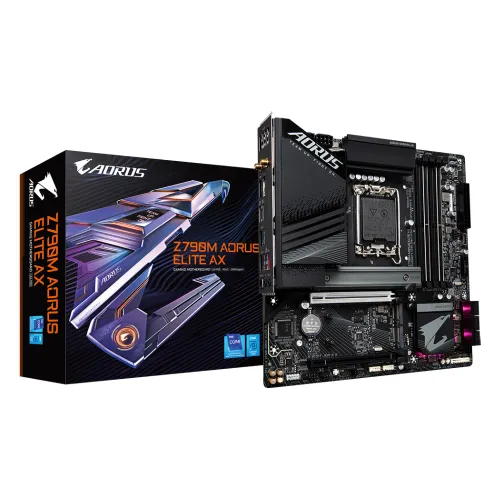

Model: Z790M AORUS ELITE AX
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
Graphics Output: 1 x HDMI, 1 x DisplayPort
Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
EMI starts from ৳ 2,892/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|---|---|---|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out | |
| Expansion Slots | PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
| Memory | Type | DDR5 |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Maximum Memory | 128GB (32 GB single DIMM capacity) |
The GIGABYTE Z790M AORUS ELITE AX mATX Motherboard is a high‑performance Intel Z790 chipset board built for 14th, 13th, and 12th Gen Intel Core processors on the LGA1700 socket, offering next‑generation features like DDR5 memory support up to 7600 MHz (OC), PCIe 5.0 readiness for GPUs and NVMe SSDs, and advanced thermal solutions for stable performance in compact builds. Designed in the micro‑ATX form factor, it combines powerful functionality with space‑saving efficiency, featuring a robust Twin 12+1+1 Hybrid Digital VRM design, 8+4 solid pin power connectors, and a 6‑layer 2X copper PCB for reliable power delivery. Storage expansion is future‑proof with triple PCIe 4.0 M.2 slots equipped with Thermal Guard protection and EZ‑Latch Plus for easy installation, while connectivity includes Wi‑Fi 6E, Gigabit LAN, multiple USB 3.2 Gen2/Gen1 ports, and USB‑C for modern devices. The rear I/O offers HDMI and DisplayPort outputs, and onboard audio powered by high‑definition codecs ensures immersive sound quality. Enhanced with RGB Fusion lighting, Ultra Durable Armor on DDR5 slots, and GIGABYTE Control Center software, the Z790M AORUS ELITE AX delivers both style and reliability. Compact yet versatile, this Gigabyte Z790M AORUS Motherboard is ideal for gamers, creators, and professionals seeking a Gigabyte DDR5 Motherboard with premium features, seamless connectivity, and future‑ready performance, making it a standout choice among Gigabyte WiFi Motherboards in Bangladesh and beyond.
In Bangladesh, you can get original GIGABYTE Z790M AORUS ELITE AX mATX Motherboard From Technohouse. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Technohouse Shop to get yours at the lowest price. The GIGABYTE Z790M AORUS ELITE AX mATX Motherboard comes with 3 years of warranty.
