Product ID: GIG-LGA1851-17·GIGABYTE
Model: Z890M GAMING X
Supported CPU: Intel Core Ultra Processors, LGA1851 socket
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066(O.C)
Graphics Output: 1 x HDMI v2.1, 2x DisplayPort v2.1
Features: 3x M.2 slots, Realtek 2.5GbE LAN chip
EMI starts from ৳ 2,583/month
Share this product
. Prices in ৳ are display-only and are not a charge.
| Basic Information | Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU |
|---|---|---|
| Chipset | Intel Z890 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel | |
| Expansion Slots | PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) | |
| Memory | Type | DDR5 |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |

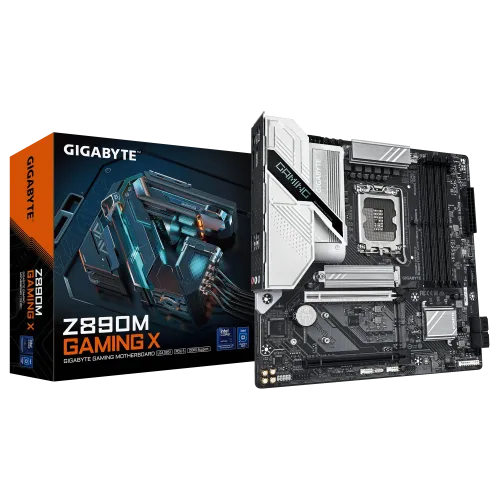

The Gigabyte Z890M GAMING X Micro ATX Motherboard is an Ultra Powerful motherboard designed to support Intel Core Ultra processors with an LGA1851 socket. Featuring the Intel Z890 Express Chipset, this Gigabyte Z890M GAMING X Motherboard offers exceptional performance and DDR5 memory support, with memory speeds ranging from 6400 MT/s to 9066 MT/s across 4 x DIMM slots, supporting up to 256 GB of system memory. It also supports dual-channel memory architecture, ECC and non-ECC un-buffered DIMMs, and Extreme Memory Profile (XMP) modules for high-speed memory configurations. For integrated graphics, the Gigabyte Z890M GAMING X motherboard includes HDMI 2.1 and DisplayPort 2.1 outputs, supporting triple-display setups at resolutions up to 4096x2304 @60 Hz with HDCP 2.3 compatibility. Powered by a Realtek Audio CODEC, it delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations and includes a Realtek® 2.5GbE LAN chip for fast, reliable networking. The Gigabyte Z890M GAMING X Motherboard also offers extensive expansion options, with a PCIe 5.0 x16 slot for graphics cards or NVMe SSDs, a PCIe 4.0 x16 slot running at x4 for additional expansion, and multiple M.2 connectors supporting PCIe 4.0/5.0 SSDs along with four SATA 6Gb/s connectors, supporting RAID for both NVMe and SATA devices. Featuring a wide range of internal and external I/O connectors, including USB 3.2 Gen 1, USB Type-C, fan headers for cooling, addressable RGB lighting, and Thunderbolt add-in card connectors, the Gigabyte Z890M GAMING X motherboard is highly customizable. It’s compatible with Windows 10 and 11 (64-bit) and uses a 256 Mbit flash BIOS with AMI UEFI BIOS, offering an intuitive interface for advanced configuration. The Micro ATX form factor (24.4cm x 24.4cm) makes the Gigabyte Z890M GAMING X Micro ATX Motherboard perfect for compact PC builds without compromising on performance. Whether for gaming or professional use, the Gigabyte Z890M GAMING X Motherboard delivers unbeatable features and future-proof capabilities, making it the ideal choice for building a high-performance gaming rig or workstation.
In Bangladesh, you can get original Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard From Technohouse. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest Technohouse Shop to get yours at lowest price. The Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard comes with a 3-year Warranty.
