MSI A520M-A PRO AMD AM4 MICRO-ATX MOTHERBOARD

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard From TECHNO HOUSE

The MSI A520M-A Pro is an entry-level MSI AMD motherboard for budget PC builds. It uses the AMD A520 chipset and the AM4 socket. It works with a Ryzen desktop processor and offers DDR4 memory, PCIe 3.0, and M.2 NVMe SSD support. Four SATA ports handle extra storage. HDMI output and USB connectivity cover daily needs. Builders who want a budget AMD motherboard for a desktop PC build will find this MSI A520M-A Pro Motherboard practical. It also makes a smart base for a budget gaming setup.

Ryzen 5000 Support with Core Boost and AMD A520 Chipset

This MSI A520M-A Pro AMD motherboard supports Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series processors. That CPU compatibility lets you start with an older chip and upgrade later. The AMD A520 chipset is the motherboard chipset that runs core system tasks and keeps the price low. Core Boost adds a premium layout and digital power design. These features help the MSI AMD motherboard drive more cores with better performance. Some boards need a BIOS update before they accept a Ryzen 5000 chip, so check the version first.

DDR4 Boost with Memory Support up to 4600 MHz (OC)

This MSI A520M-A Pro AM4 motherboard has two DDR4 memory slots and supports up to 64GB. Memory compatibility is wide. JEDEC speeds run from 1866 to 3200 MHz. A-XMP OC mode supports speeds from 2667 up to 4600+ MHz. The maximum speed is 4600 MHz with 1DPC 1R and 3866 MHz with 1DPC 2R. Dual-channel architecture improves data flow. The MSI A520M-A Pro M-ATX Motherboard accepts non-ECC UDIMM, ECC UDIMM in non-ECC mode, and un-buffered memory. DDR4 Boost delivers clean data signals for stable performance.

PCIe 3.0 x16 and x1 Expansion Slots

This AM4 motherboard offers one PCIe 3.0 x16 slot connected to the AMD processor. The slot runs at x16 speed with Ryzen 5000, 5000G, 4000G, and 3000 processors. The MSI A520M-A Pro motherboard runs at x8 speed with Ryzen 3000G processors. It runs at x4 speed with AMD Athlon processors with Radeon graphics. The single PCIe 3.0 x1 slot adds room for a Wi-Fi card, sound card, or other small add-in card.

HDMI 2.1 and DVI-D Onboard Graphics Output

The HDMI 2.1 port supports a maximum resolution of 4096x2160 at 60Hz. HDMI output also supports HDCP 1.4 and 2.3 for protected content. The DVI-D port supports up to 1920x1200 at 60Hz. Integrated graphics can share a maximum of 16GB of memory. With the MSI A520M-A Pro motherboard, you can run a basic PC without a graphics card. Later, you can add a dedicated card to the PCIe 3.0 x16 slot.

Turbo M.2 NVMe, SATA Storage and RAID Support

The AMD A520 chipset provides four SATA 6Gb/s ports for SATA storage on hard drives and SSDs. One M.2 slot with Key M connects directly to the AMD processor. The MSI A520M-A Pro motherboard supports PCIe 3.0 x4 and SATA 6Gb/s with Ryzen 5000, 5000G, 4000G, 3000, and 3000G processors. Athlon processors with Radeon Vega Graphics support SATA 6Gb/s only. The slot fits 2242, 2260, and 2280 drives. Turbo M.2 boosts M.2 NVMe SSD speed. RAID 0, RAID 1, and RAID 10 work with SATA drives.

USB 3.2 Gen 1, Audio Boost and Gigabit LAN

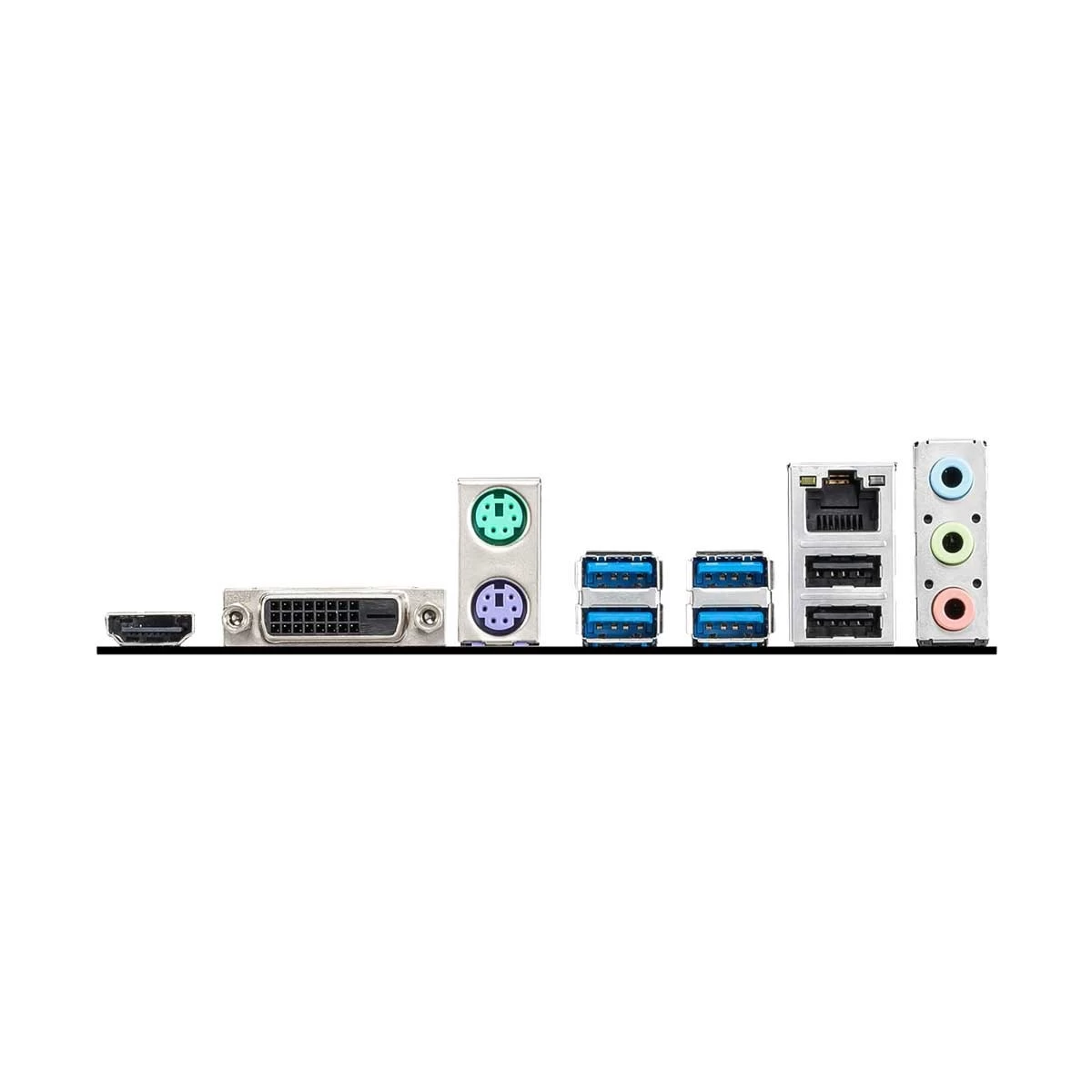

USB connectivity starts with four USB 3.2 Gen 1 5Gbps Type-A ports on the back panel, driven by the processor. The chipset adds two more USB 3.2 Gen 1 ports through an internal connector. Six USB 2.0 ports are available: two on the back panel and four through internal connectors. The MSI A520M-A Pro motherboard has Realtek ALC892/ALC897 codec delivers 7.1-channel high definition audio. Audio Boost improves sound quality. A Realtek RTL8111H controller provides Gigabit LAN for fast, stable wired internet.

Best for Budget Gaming, Home and Office PCs

This MSI A520M-A Pro motherboard suits first-time builders who want a simple, low-cost start. Students and home users can build a reliable desktop for study and video calls. Budget gamers can pair it with a Ryzen processor and add a graphics card later. The Micro-ATX motherboard size fits compact cases. Many buyers search for the MSI motherboard price in Bangladesh before they build. Compare the MSI A520M-A Pro motherboard price in Bangladesh with similar boards.

Buy MSI A520M-A Pro AMD AM4 Motherboard from TECHNO HOUSE

In Bangladesh, you can get original MSI A520M-A Pro AMD AM4 Motherboard From TECHNO HOUSE. We have a large collection of latest MSI AMD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest TECHNO HOUSE Shop to get yours at lowest price. The MSI A520M-A Pro AMD AM4 Micro-ATX Motherboard comes with 3 years warranty.
