Product ID: TH-SKU-677243·MSI
Regular price

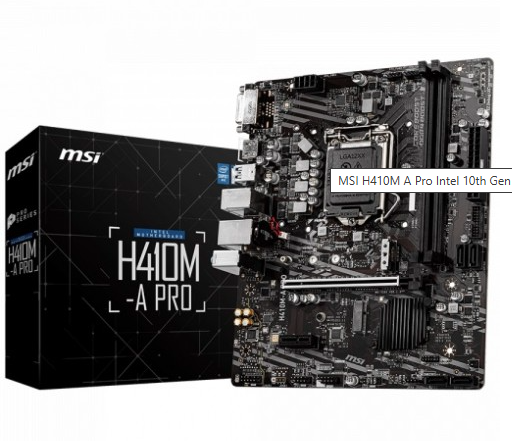

Model: MSI H410M A Pro
Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
DDR4, Audio & Core Boost
Low Latency Gaming LAN
Extreme Stability & Compatibility
EMI starts from ৳ 708/month
Share this product
3 Year. Prices in ৳ are display-only and are not a charge.
| Specifications | Socket | LGA1200 |
|---|---|---|
| Form Factor | Micro-ATX |
Specification
Basic Information
Supported CPU
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
Chipset
Intel H410
Form Factor
Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Expansion Slots
PCI
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket
1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
1x M.2 slot with E key for WiFi module only
Memory
Type
Dual Channel Memory Architecture
Slots
2 x DIMM
Supported Memory
Intel Core i7/ i9
-Supports up to DDR4 2933 MHz
Intel Core i5 and below
-Supports up to DDR4 2666 MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory
64GB
Graphics
Graphics
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Max Shared Memory
1GB
Connector & Ports
HDMI
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
DVI-D (s)
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
USB (s)
Intel H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s)
1x Intel I219V Gigabit LAN controller
Supported Storage
Intel H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Audio
Realtek ALC892 Codec
7.1-Channel High Definition Audio
Internal I/O Ports
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED
TPM (Trusted Platform Module )
1 x TPM module connector
Warranty Information
Manufacturing Warranty
03 Years
