Product ID: MSI-MAG-B850M-MORTAR-WIFI·MSI
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset
AMD B850
Form Factor
mATX
243.84mmx243.84mm
Audio
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Expansion Slots
PCI
1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4x DIMMs
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Graphics
Graphics
1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI
1x HDMI
USB (s)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Port (s)
Realtek 8126-VB 5G LAN
Wireless Communication module
Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
M2_3 slot
• Supports up to PCIe 4.0 x2
RAID
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years
EMI starts from ৳ 2,708/month
Share this product
3 Year. Prices in ৳ are display-only and are not a charge.
| Specifications | Socket | AM5 |
|---|---|---|
| Form Factor | Micro-ATX |

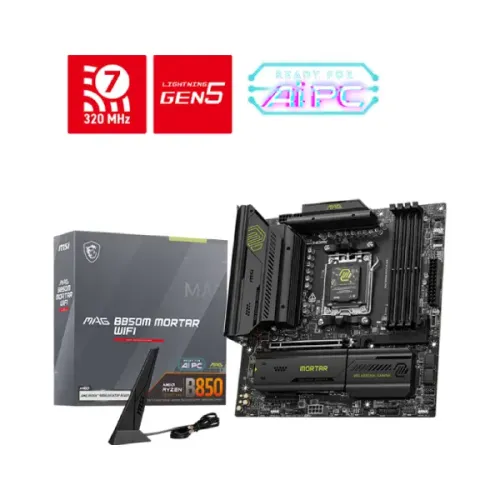

The MSI MAG B850M MORTAR WIFI is a powerful MSI motherboard based on the advanced AMD B850 chipset, designed specifically for customers who want to take advantage of the power of AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with the AM5 socket. The MSI MAG B850M MORTAR WIFI Motherboard supports up to 256GB of DDR5 memory over four dual-latch DIMM slots and offers excellent memory speeds of up to 8200+ MT/s (OC) depending on CPU and setup. It supports AMD EXPO, dual-channel architecture, JEDEC and AMD POR speeds, non-ECC UDIMMs, and CUDIMM clock driver bypass mode, providing maximum compatibility and overclocking freedom. Designed for enthusiasts, the MSI MAG B850M MORTAR WIFI features a robust 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies—reinforced by an 8-layer 2oz thickened copper PCB to enhance power delivery, signal integrity, and thermal performance. Expansion and high-speed storage capabilities on the MSI MAG B850M MORTAR WIFI mATX Motherboard include one PCIe 5.0 x16 slot, one PCIe 4.0 x4 slot, and three M.2 slots—two of which support PCIe 5.0 x4 (when using Ryzen 9000/7000 CPUs) and one PCIe 4.0 x2 via the chipset, in addition to four SATA 6Gbps ports. RAID functionality supports RAID 0/1/10 for SATA and RAID 0/1/5 for M.2 NVMe drives, with RAID 5 available exclusively for Ryzen 9000 processors. Thermally, the MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard incorporates MSI’s Frozr Guard thermal design, which includes extended heatsinks, high-performance thermal pads (7W/mK), choke cooling, and EZ M.2 Shield Frozr II for optimal M.2 SSD performance and installation ease. Connectivity is next-gen with onboard Wi-Fi 7, Bluetooth 5.4, and Realtek 8126-VB 5G LAN, delivering blazing-fast network speeds for gaming, streaming, and professional workloads. The MSI MAG B850M MORTAR WIFI Motherboard also features extensive USB connectivity: four USB 2.0 front ports, two USB 5Gbps Type-A front, four USB 5Gbps Type-A rear, three USB 10Gbps Type-A rear, a 10Gbps Type-C port on both front and rear panels, and a blazing-fast 20Gbps USB Type-C port on the rear I/O. For integrated graphics users, an HDMI 2.1 FRL port supports up to 8K resolution at 60Hz, depending on the installed APU. Audio is powered by the Realtek ALC4080 Codec, supporting 7.1-channel HD audio, 32-bit/384kHz playback, and S/PDIF output, enhanced by Audio Boost 5 for a studio-grade sound experience. The board has a number of internal connections and headers for fans, RGB lighting (3x JARGB_V2, 1x JRGB), front panel I/O, TPM 2.0, and more. MSI's EZ DIY features, including EZ PCIe Release, EZ M.2 Clip II, and EZ Antenna, make constructing and upgrading easier than ever. Troubleshooting is made easier with EZ Debug LEDs and an EZ Memory Detection LED.
