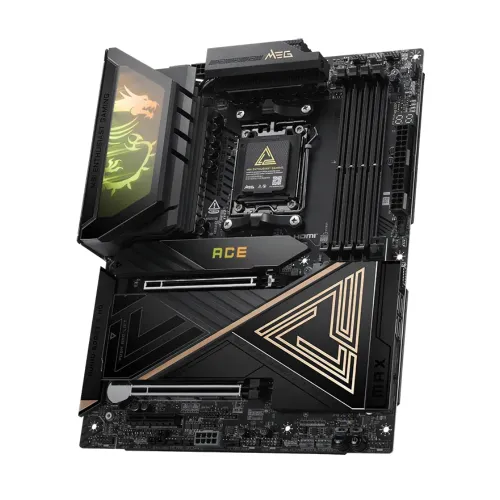

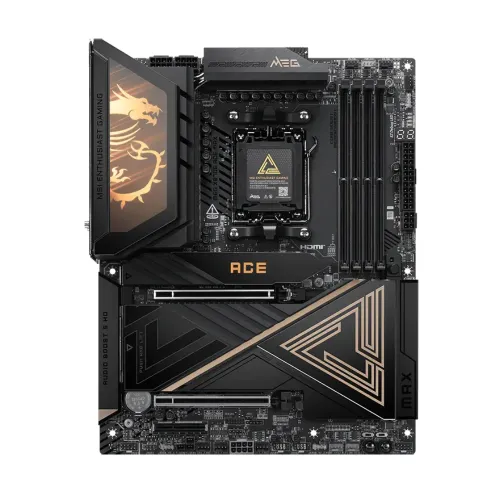

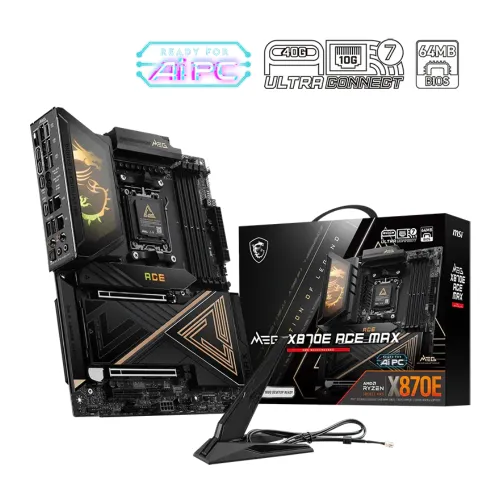

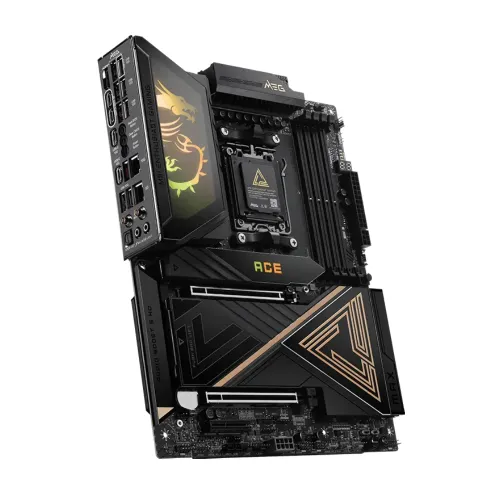

MSI MEG X870E ACE MAX AMD AM5 ATX MOTHERBOARD

Name: MSI MEG X870E ACE MAX AMD AM5 ATX MOTHERBOARD
Brand: MSI
SKU: TH-SKU-195790
Price: 97000 BDT
Availability: OutOfStock

0 reviewsOut Of StockSKU: TH-SKU-195790Brand: MSI

Quick Overview

Key Features

Model: MEG X870E ACE MAX
Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM: 4x DDR5 UDIMM, 8400+MT/s (OC), Max 256GB
Graphics Output: 2x Type-C, 1 x HDMI
Features: 5 x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4

Sale

Qty

3 Year. Prices in ৳ are display-only and are not a charge.

Specification

Basic Information

Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

ChipsetAMD X870E

Form FactorATX 243.84mmx304.8mm

AudioRealtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)

M.2 Socket5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

Memory

TypeDDR5

Slots4x UDIMM

Supported MemoryMaximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*

Maximum Memory256GB

Details

Q&A

Review

Brand: MSI
Warranty: 3Y3 Year

MSI MEG X870E ACE MAX AMD AM5 ATX MOTHERBOARD

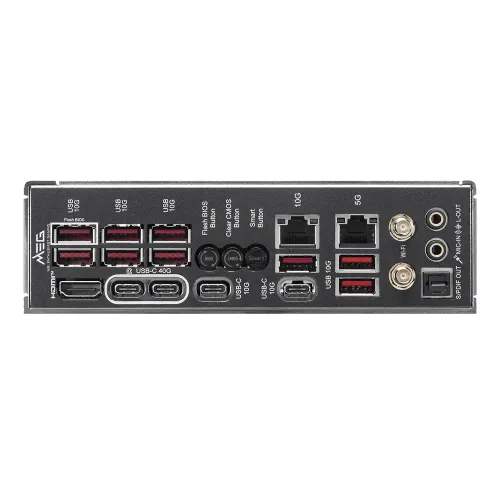

The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is a flagship MSI Motherboard built for enthusiasts who demand extreme performance, future-ready connectivity, and uncompromising stability. Powered by the advanced AMD X870E chipset with support for the latest AM5 socket, it is fully compatible with AMD Ryzen 9000, 8000, and 7000 series processors, making it a future-proof platform for gaming and professional workloads. The MSI MEG X870E ACE MAX Motherboard supports up to 256GB DDR5 memory with speeds reaching 8400+ MT/s via AMD EXPO™, ensuring lightning-fast responsiveness for gaming, AI, and content creation. Storage expansion is unmatched with five M.2 slots, including two PCIe 5.0 NVMe SSD slots, alongside reinforced PCIe 5.0 GPU support for next-gen graphics cards. Connectivity is cutting-edge with 13 rear USB ports including USB4, Wi-Fi 7, and 10G LAN, making this MSI 870 Motherboard one of the most advanced networking-ready boards available. Premium features like a 110A SPS VRM design, 64MB BIOS ROM, and robust heatsinks guarantee stable overclocking and long-term durability, while integrated AMP/DAC audio delivers studio-quality sound. Sleekly designed with MSI’s signature aesthetics, the MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard is the ultimate choice for gamers, creators, and professionals seeking a high-end MSI gaming motherboard that blends performance, reliability, and future-proof technology into one powerhouse platform.

Buy MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard from TECHNO HOUSE

In Bangladesh, you can get original MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard From TECHNO HOUSE. We have a large collection of latest MSI AMD Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest TECHNO HOUSE Shop to get yours at lowest price. The MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard comes with 3 years warranty.
