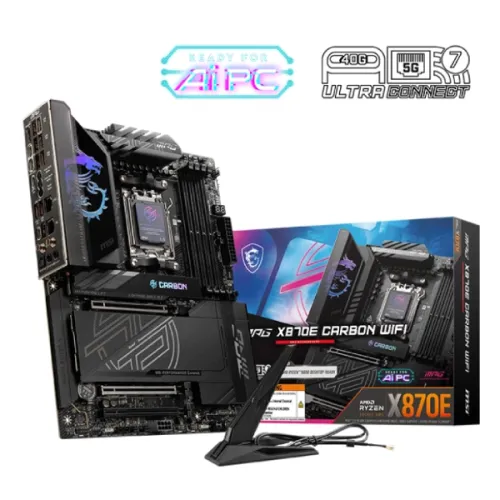

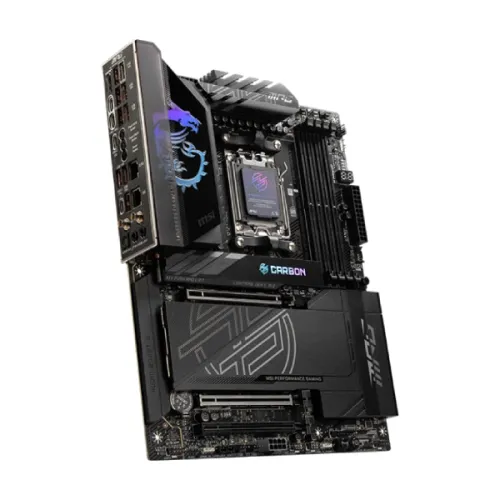

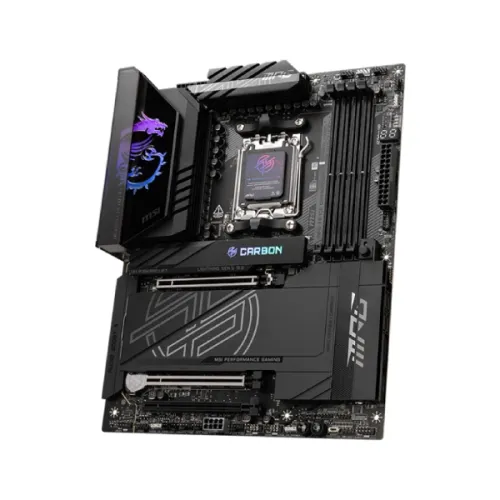

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX MOTHERBOARD

Name: MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX MOTHERBOARD
Brand: MSI
SKU: TH-SKU-461758
Price: 70500 BDT
Availability: OutOfStock

0 reviewsOut Of StockSKU: TH-SKU-461758Brand: MSI

Quick Overview

Key Features

Model: MPG X870E CARBON WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM: 4x DDR5, Up to 8400-5600 (OC) MT/s
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Features: 1x 2.5G LAN, 1x 5G LAN, Wi-Fi 7, Bluetooth 5.4

Sale

Qty

3 Year. Prices in ৳ are display-only and are not a charge.

Specification

Basic Information

Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

ChipsetAMD X870E

Form FactorATX 243.84mmx304.8mm

AudioRealtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output

Expansion Slots

PCI3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.

M.2 Socket4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Memory

TypeDDR5

Slots4 DIMMs

Supported MemoryMemory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s

Maximum Memory256GB

Details

Q&A

Review

Brand: MSI
Warranty: 3Y3 Year

MSI MPG X870E CARBON WIFI-7 AMD AM5 DDR5 ATX Motherboard

The MSI MPG X870E CARBON WIFI-7 Motherboard is designed to compatible with the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors, providing a stable platform for high-performance computing. It has an AM5 socket and supports up to 256GB of DDR5 memory with amazing overclocking rates of up to 8400 MT/s. This MSI DDR5 motherboard includes three PCI-E x16 slots that support PCIe 5.0 and 4.0 configurations for modern graphics cards. The MSI MPG X870E CARBON WIFI-7 Motherboard includes onboard graphics options such as HDMI 2.1 and two Type-C DisplayPort outputs, which support high-resolution video up to 8K at 60Hz. The Realtek ALC4080 Codec provides high-fidelity audio with 7.1-channel capability and S/PDIF output to ensure immersive sound quality. The MSI MPG X870E CARBON WIFI-7 DDR5 Motherboard has four M.2 slots and four SATA 6G connections, as well as RAID compatibility for SATA and M.2 NVME for users that require a lot of storage space. MSI MPG X870E CARBON WIFI-7 ATX Motherboard features many USB ports, including USB 2.0, USB 5Gbps, USB 10Gbps, and USB 40Gbps Type-C interfaces for quick data transfer and networking. The network is powered by Realtek 5G and 2.5G LAN, and the onboard Wi-Fi 7 solution supports MU-MIMO and Bluetooth 5.4 for seamless wireless connectivity. The cooling system has numerous fan headers and compatibility for advanced cooling solutions, assuring peak thermal performance. In addition, MSI MPG X870E CARBON WIFI-7 AMD AM5 DDR5 ATX Motherboard features RGB lighting with EZ Debug LED and EZ Digit Debug LED for a visually beautiful appearance.

Buy MSI MPG X870E CARBON WIFI-7 Motherboard from TECHNO HOUSE

In Bangladesh, you can get original MSI MPG X870E CARBON WIFI-7 AMD AM5 DDR5 ATX Motherboard From TECHNO HOUSE. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest TECHNO HOUSE Shop to get yours at lowest price. The MSI MPG X870E CARBON WIFI-7 AMD AM5 DDR5 ATX Motherboard comes with 3 years warranty.
