3 Year
Coverage shown here is a catalog cue for shopping. Final warranty terms follow the product and brand policy at purchase.
Product ID: MSI-PRO-B760M-P·MSI
Regular price
Basic Information | ||
Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors | |
Chipset | INTEL B760 | |
Form Factor | mATX | |
Audio | Realtek ALC897 Codec | |
Expansion Slots | ||
PCI | 1x PCI-E x16 slot | |
Memory | ||
Type | DDR5 | |
Slots | 4 | |
Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
Maximum Memory | 192GB | |
Graphics | ||
Graphics | 1x HDMI | |
Connector & Ports | ||
HDMI | 1x HDMI | |
Display Port (s) | 1x DisplayPort | |
VGA (s) | 1x VGA | |
USB (s) | 4x USB 2.0 (Rear) | |
LAN Port (s) | Realtek RTL8111H Gigabit LAN | |
Supported Storage | 2x M.2 | |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
Audio | Audio Connectors | |
Internal I/O Ports | 1x Power Connector(ATX_PWR) | |
TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
Others | ||
Special Features | 4x EZ Debug LED | |
Warranty Information | ||
Manufacturing Warranty | 3 years | |
EMI starts from ৳ 1,167/month
Share this product
3 Year. Prices in ৳ are display-only and are not a charge.
| Specifications | Socket | LGA1700 |
|---|---|---|
| Form Factor | Micro-ATX | |
| Memory Type | DDR5 |

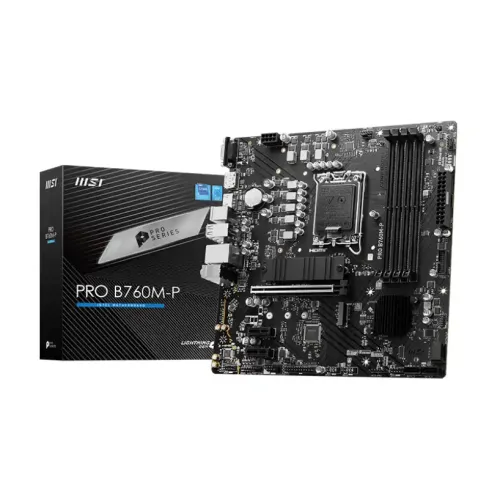

MSI PRO B760M-P DDR5 mATX Motherboard
The MSI PRO B760M-P Motherboard supports 14th/13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and two M.2 slots allowing you to take advantage of the full power of 14th 13th & 12th generation Intel processors. The four SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Connect to a wireless network with Wi-Fi 6 (802.11ax) technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.3 technology. This motherboard is compatible with both Windows 10 and Windows 11 (64-Bit).
