Genuine brand warranty coverage, supported with authorized repairs.
Coverage shown here is a catalog cue for shopping. Final warranty terms follow the product and brand policy at purchase. Read policy
Model: X870E GAMING PLUS WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
Graphics Output: 1x HDMI, 1x Type-C DisplayPort
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
EMI starts from ৳ 3,542/month
3 Year. Prices in ৳ are display-only and are not a charge.
Featuring high-speed DDR5 memory, PCIe 5.0 graphics support, next-generation Wi-Fi 7, 5G LAN, USB4 connectivity, and three M.2 storage slots, this motherboard provides a powerful foundation for modern gaming PCs and advanced desktop workstations. Its robust power delivery and enhanced thermal design help support demanding computing workloads.
Powered by the AMD X870E chipset, the MSI X870E GAMING PLUS WIFI supports compatible AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors through the AM5 socket.
Whether you are building a competitive gaming PC, a content creation workstation, or a powerful multitasking system, this motherboard offers a modern platform with extensive connectivity and expansion options. Processor features and compatibility may vary by generation, so check the official CPU support list and BIOS requirements before purchasing.
The motherboard features four DDR5 UDIMM memory slots supporting up to 256GB of RAM in dual-channel configuration. It supports AMD EXPO™ memory profiles and compatible memory overclocking configurations, with speeds of up to 8200+ MT/s (OC) under supported conditions.
High-bandwidth DDR5 memory helps deliver responsive performance for demanding games, creative applications, multitasking, and professional workloads. Actual supported speeds depend on the processor, memory kit, BIOS, and installed DIMM configuration.
The MSI X870E GAMING PLUS WIFI features a reinforced primary PCIe 5.0 x16 slot designed for compatible graphics cards. It also provides additional PCIe expansion slots for supported devices, including storage controllers and other add-in cards.
MSI PCIe Steel Armor reinforces the primary graphics-card slot to provide additional structural support. The motherboard also includes supplemental PCIe power connectivity designed to help support the power demands of compatible high-performance graphics cards.
The primary graphics slot's operating speed and lane configuration depend on the installed processor. This platform is suitable for advanced gaming, high-resolution graphics, and demanding GPU-accelerated applications.
With three M.2 slots, the motherboard offers flexible storage expansion for modern desktop systems:
1 × PCIe 5.0 x4 M.2 slot for compatible next-generation NVMe SSDs.
2 × PCIe 4.0 x4 M.2 slots for high-speed NVMe storage.
4 × SATA 6Gb/s ports for additional SATA SSDs and hard drives.
The PCIe 5.0 M.2 slot supports compatible PCIe 5.0 SSDs with supported processors, while the PCIe 4.0 slots provide additional high-speed storage options. MSI EZ M.2 Shield Frozr II helps manage SSD temperatures, and the EZ M.2 Clip II design makes compatible M.2 installation and removal easier.
Experience advanced wireless networking with Wi-Fi 7 support. Designed for compatible Wi-Fi 7 routers and devices, it offers high throughput, improved network efficiency, and support for modern wireless features.
The onboard Realtek 5G LAN controller provides high-speed wired networking for demanding online gaming, large file transfers, and compatible multi-gigabit network environments. Bluetooth 5.4 support also enables connectivity with compatible wireless peripherals and accessories.
Actual network performance depends on your router, internet service, network environment, and connected devices.

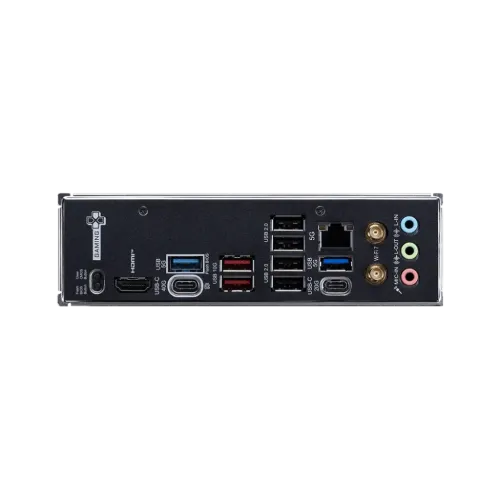

The MSI X870E GAMING PLUS WIFI includes a rear USB4 Type-C port supporting transfer speeds of up to 40Gbps, making it suitable for compatible high-speed external storage and other USB4 devices. It also features a rear USB Type-C port supporting up to 20Gbps, along with additional USB Type-A and Type-C connections.
These ports provide flexible connectivity for external drives, peripherals, compatible docking solutions, and other modern devices.
The motherboard also includes HDMI 2.1 and USB4-based DisplayPort output. Display output requires a compatible processor with integrated graphics, and supported resolutions depend on the processor and connected display.
Designed for demanding Ryzen desktop configurations, the motherboard features a 14+2+1 Duet Rail Power System with 60A Smart Power Stages, dual 8-pin CPU power connectors, and an optimized PCB design.
Its extended heatsink design, MOSFET thermal pads, and M.2 Shield Frozr II help manage heat around critical components. These thermal features are designed to support stable operation during demanding gaming sessions and intensive workloads.
MSI incorporates several convenient features to simplify installation, maintenance, and system troubleshooting:
EZ PCIe Clip II: Helps simplify graphics-card removal.
EZ M.2 Shield Frozr II: Provides convenient M.2 SSD installation and thermal coverage.
EZ Antenna: Makes Wi-Fi antenna connection more convenient.
Flash BIOS Button: Allows supported BIOS updates using the appropriate USB procedure, even without a CPU or memory installed.
EZ Debug LEDs: Help identify potential CPU, memory, graphics, and boot-related problems.
The onboard Realtek ALC897 audio solution supports 7.1-channel high-definition audio for compatible speakers and headphones. MSI Audio Boost technology is designed to enhance the audio experience for gaming, entertainment, online communication, and everyday multimedia use.
Looking for a powerful motherboard for your next AMD Ryzen gaming PC or professional workstation? The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard combines advanced processor support, high-speed DDR5 memory, PCIe 5.0 graphics connectivity, triple M.2 storage, Wi-Fi 7, 5G LAN, and USB4 in one feature-rich platform.
At TECHNO HOUSE, Bangladesh, you can explore a wide selection of motherboards, AMD Ryzen processors, graphics cards, DDR5 RAM, SSDs, power supplies, and other computer components for your PC build.
Whether you are assembling a high-performance gaming system, upgrading your workstation, or building a powerful content creation PC, this MSI motherboard provides extensive connectivity and expansion options for modern hardware.
Before purchasing, confirm processor compatibility, BIOS requirements, DDR5 memory support, case dimensions, cooling requirements, and the power needs of your selected components.
Contact TECHNO HOUSE to check the latest price, current availability, and warranty information.
A wide selection of motherboards and computer components.
Assistance with choosing compatible AMD Ryzen processors and DDR5 memory.
Product information to help you plan your PC configuration.
Support with checking current pricing, stock, and warranty details.
