Product ID: MSI-Z790-GAMING-PLUS-WIFI·MSI
Regular price
Supported CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Chipset
INTEL Z790
Form Factor
ATX
243.84mmx304.8mm
Audio
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket
4x M.2 slots
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory
192GB
Graphics
Graphics
1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Intel 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
EMI starts from ৳ 2,792/month
Share this product
3 Year. Prices in ৳ are display-only and are not a charge.
| Specifications | Socket | LGA1700 |
|---|---|---|
| Form Factor | ATX | |
| Memory Type | DDR5 |

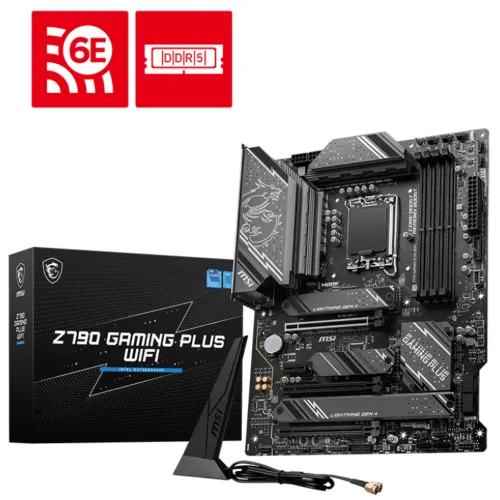

The MSI Z790 GAMING PLUS WIFI motherboard is a high-performance motherboard designed to meet the demands of modern gamers and PC enthusiasts. This motherboard supports a wide range of Intel processors, including the 14th, 13th, and 12th generation Intel Core processors, as well as Intel Pentium Gold and Celeron processors, making it compatible with a variety of CPU options for the LGA 1700 socket. This motherboard is its support for DDR5 memory, with overclocking capabilities reaching up to an impressive 7200+ MHz. This means you can achieve blazing-fast memory speeds to enhance your system's overall performance. To ensure stable and efficient power delivery to the CPU, the MSI Z790 GAMING PLUS WIFI motherboard features an Enhanced Power Design. It boasts a 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost technology, and Memory Boost technology. These features provide reliable power to your CPU and RAM for smoother gaming and computing experiences. It comes equipped with an extended heatsink to dissipate heat effectively. Additionally, the MOSFET thermal pads are rated for 7W/mK, and extra choke thermal pads are included to maintain optimal performance during long gaming sessions. Gamers will appreciate the lightning-fast gaming experience this motherboard offers. It comes with a PCIe 5.0 slot for high-speed graphics card support, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr for fast storage options, and USB 3.2 Gen 2x2 20G for rapid data transfer. The motherboard is built on a high-quality PCB with a 6-layer design made from 2oz thickened copper, ensuring durability and efficient signal transmission. For an immersive gaming experience, the MSI Z790 GAMING PLUS WIFI motherboard also includes Audio Boost technology, delivering studio-grade sound quality to enhance your gaming audio. This feature further elevates your gaming and entertainment experience, making it an excellent choice for gamers and PC enthusiasts looking for a feature-packed and high-performance motherboard.
